• SKF 2313K Open Self Aligning Ball Bearing with Taper Bore 65x140x48mm
1 1

SKU: 2313K-SKF

SKF 2313K Open Self Aligning Ball Bearing with Taper Bore 65x140x48mm

SKF 2313K Open Self Aligning Ball Bearing with Taper Bore 65x140x48mm
CHF 259.00 ex VAT
CHF 259.00 ex VAT
Sale Sold out

Equivalent to: 2313EK 2313K

In stock

Price Break
10+ CHF 205.84
19+ CHF 194.28
29+ CHF 191.96
39+ CHF 189.65
49+ CHF 187.34
74+ CHF 185.03
99+ CHF 173.46
199+ CHF 171.15
249+ CHF 168.84
499+ CHF 166.52
999+ CHF 161.90
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds.
Benefits: Tolerates misalignment, cool running, self centering

Equivalent: 2313EK 2313K
Brand / Quality:
SKF - High Quality
Inside Diameter:
65mm
Outside Diameter:
140mm
Width:
48mm
Seals / Shields:
None
Clearance:
* Standard
Technical

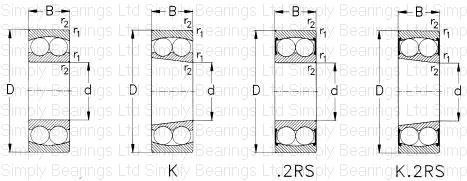

--- Dimensions
d 65mm
D 140mm
B 48mm
D1 122mm
d2 85.5mm
r1r2 2.1mm
da min 77mm
Da max 128mm
ra max 2mm
--- Calculation Data
Dynamic load C 95.6 kN
Static load Co 32.5 kN
Fatigue load limit Pu 1.66 kN
Reference speed 9000 rpm
Limiting speed 6300 rpm
Calculation factor e 0.37
Calculation factor Y0 1.8
Calculation factor Y1 1.7
Calculation factor Y2 2.6
--- Weights
Weight 3.25 kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2313+sleeve>H2313</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2313+sleeve>HA2313</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2313+sleeve>HE2313</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS2313+sleeve>HS2313</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH2313G+sleeve>AH2313G</a>
