SKU: 23220-2CS/VT143-SKF

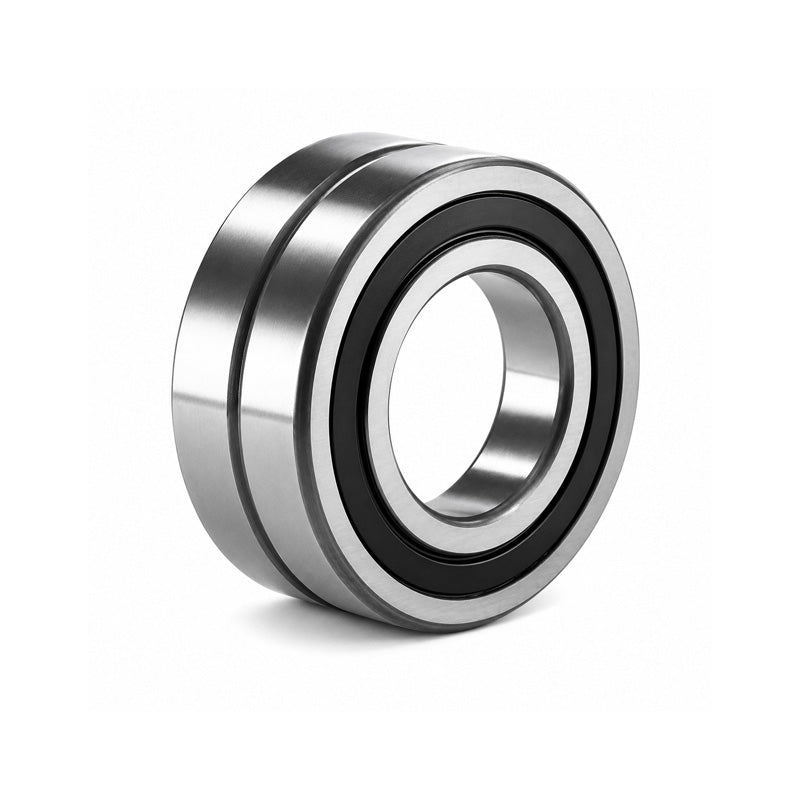

SKF 232202CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 100x180x60.3mm
SKF 232202CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 100x180x60.3mm
Regular price
CHF 482.00
ex VAT
Regular price
Sale price
CHF 482.00
ex VAT
Equivalent to: 232202RS/VT143
In stock
Price Break
3+
CHF 383.54
4+
CHF 361.99
9+
CHF 357.68
19+
CHF 353.37
29+
CHF 349.06
39+
CHF 344.75
49+
CHF 323.21
59+
CHF 318.90
249+
CHF 314.59
499+
CHF 310.28
999+
CHF 301.66
Share this product
Description
Description
|
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed |
Equivalent: 232202RS/VT143
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 60.3mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 100mm |
| D | 180mm |
| B | 60.3mm |
| D1 | 161mm |
| d2 | 114mm |
| r1r2 min | 2.1mm |
| b | 8.3mm |
| K | 4.5mm |
| da min | 112mm |
| da max | 114mm |
| Da max | 168mm |
| ra max | 2mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 475 kN |
| Static load Co | 600 kN |
| Fatigue load limit Pu | 63 kN |
| Limiting speed | 700 rpm |
| Weight | 6.85 kg |
| --- | Factors |
| Calculation factor e | 0.3 |
| Calculation factor Y1 | 2.3 |
| Calculation factor Y2 | 3.4 |
| Calculation factor Y0 | 2.2 |
