SKU: 23220-E1-TVPB-C3-FAG

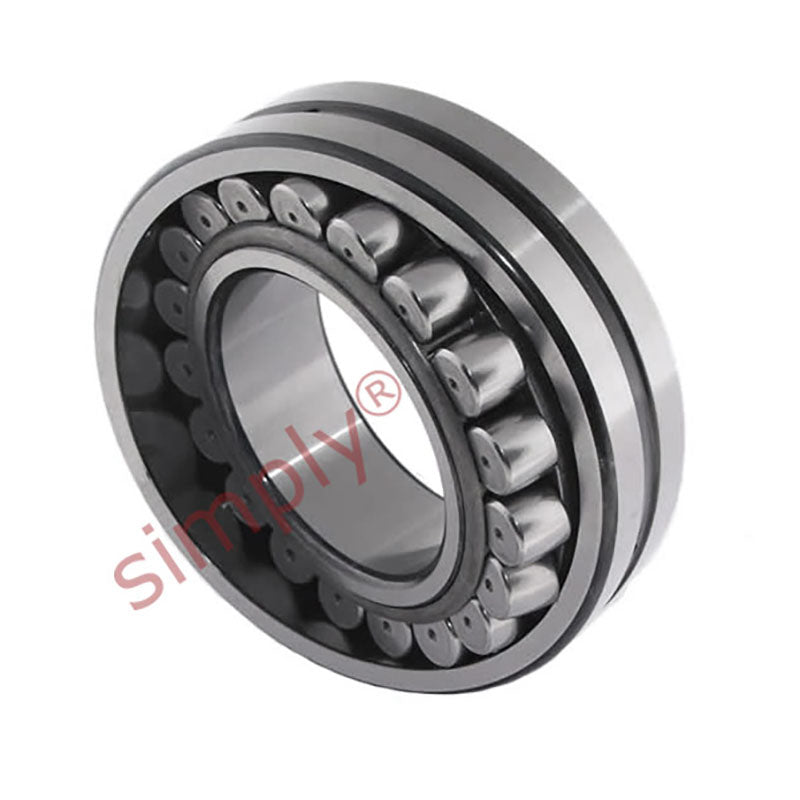

FAG 23220E1TVPBC3 X-life Spherical Roller Bearing with Cylindrical Bore with Glass Fibre Reinforced Polyamide Cage 100x180x60.3mm
FAG 23220E1TVPBC3 X-life Spherical Roller Bearing with Cylindrical Bore with Glass Fibre Reinforced Polyamide Cage 100x180x60.3mm
Regular price
CHF 376.00
ex VAT
Regular price
Sale price
CHF 376.00
ex VAT
In stock
Price Break
3+
CHF 299.16
4+
CHF 282.35
9+
CHF 278.99
19+
CHF 275.63
29+
CHF 272.27
39+
CHF 268.90
49+
CHF 252.10
59+
CHF 248.74
249+
CHF 245.37
499+
CHF 242.01
999+
CHF 235.29
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 60.3mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 100mm |
| D | 180mm |
| B | 60.3mm |
| r min. | 2.1mm |
| D1 | 156.7mm |
| d2 | 116.7mm |
| ds | 4.8mm |
| ns | 9.5mm |
| da min. | 112mm |
| Da max. | 168mm |
| ra max. | 2.1mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 60000 N |
| Limiting speed | 3600 rpm |
| Reference speed | 2410 rpm |
| Dynamic Load Rating | 550000 N |
| Static Load Rating | 660000 N |
| Weight | 6.32kg |
| --- | Factors |
| e | 0.31 |
| Y1 | 2.15 |
| Y2 | 3.2 |
| Y0 | 2.1 |
