SKU: 23224-E1-K-TVPB-FAG

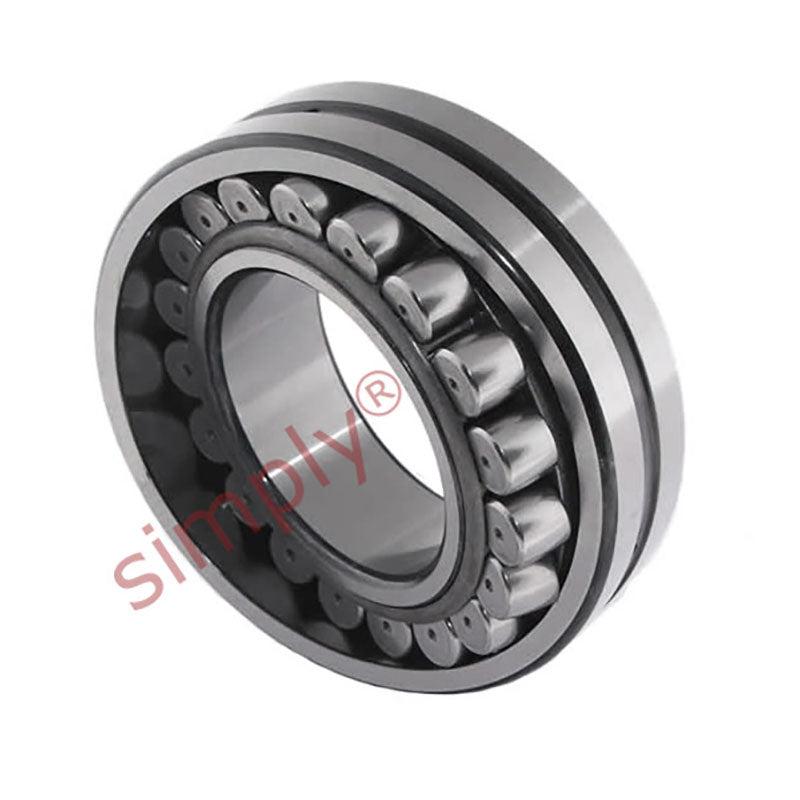

FAG 23224E1KTVPB X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 120x215x76mm
FAG 23224E1KTVPB X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 120x215x76mm
Regular price
CHF 574.22
ex VAT
Regular price
Sale price
CHF 574.22
ex VAT
Equivalent to: 23224K
In stock
Price Break
10+
CHF 511.06
19+
CHF 482.34
29+
CHF 476.60
39+
CHF 470.86
49+
CHF 465.12
74+
CHF 459.38
99+
CHF 430.67
199+
CHF 424.92
249+
CHF 419.18
499+
CHF 413.44
999+
CHF 401.95
Couldn't load pickup availability
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
Equivalent: 23224K
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 76mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 120mm |
| D | 215mm |
| B | 76mm |
| r min. | 2.1mm |
| D1 | 185.5mm |
| d2 | 139mm |
| ds | 4.8mm |
| ns | 9.5mm |
| da min. | 132mm |
| Da max. | 203mm |
| ra max. | 2mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 80000 N |
| Limiting speed | 2800 rpm |
| Reference speed | 1910 rpm |
| Dynamic Load Rating | 820000 N |
| Static Load Rating | 1020000 N |
| Weight | 11.1kg |
| --- | Factors |
| e | 0.33 |
| Y1 | 2.03 |
| Y2 | 3.02 |
| Y0 | 1.98 |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2324+sleeve>H2324</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2324+sleeve>HE2324</a> |
| --- | Matching Withdrawal Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX3224G+sleeve>AHX3224G</a> |
