SKU: 24B-1-2.5MTR-RENOLD

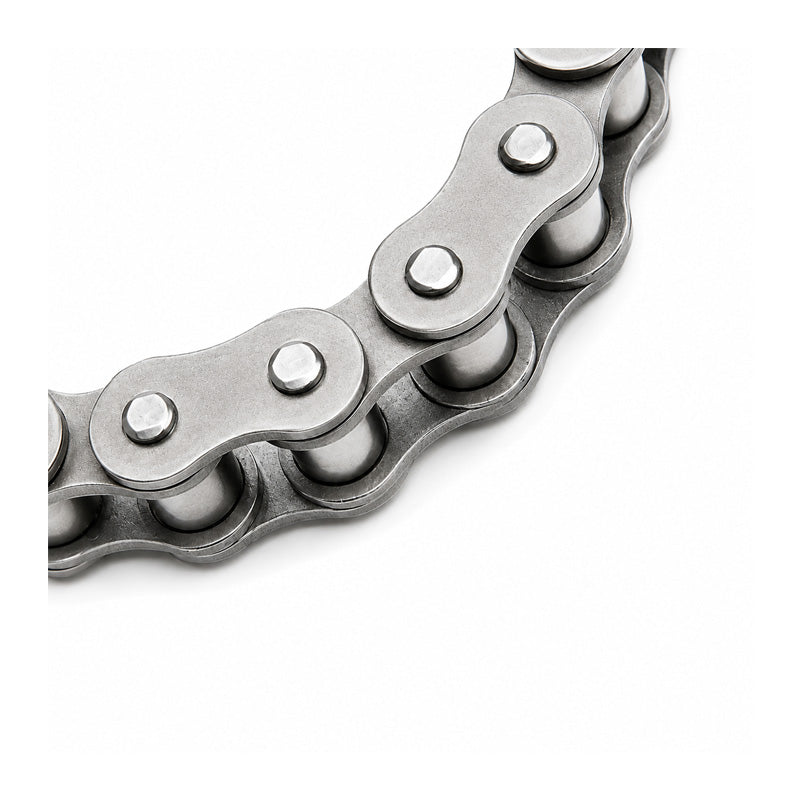

Renold 24B-1 BS Simplex Roller Chain 1-1/2 inch Pitch 2.5 Metres
Renold 24B-1 BS Simplex Roller Chain 1-1/2 inch Pitch 2.5 Metres
Regular price
CHF 119.27
ex VAT
Regular price
Sale price
CHF 119.27
ex VAT
In stock
Price Break
10+
CHF 106.15
19+
CHF 100.19
29+
CHF 98.99
39+
CHF 97.80
49+
CHF 96.61
74+
CHF 95.42
99+
CHF 89.45
199+
CHF 88.26
249+
CHF 87.07
499+
CHF 85.87
999+
CHF 83.49
Couldn't load pickup availability
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (P) | 38.1mm = 1.5 (1-1/2) inch |
|---|---|
| Roller Diameter (D1 max) | 25.4mm |
| Width between inner plates (B1 min) | 25.4mm |
| Pin dia meter (D2 max) | 14.63mm |
| Pin length (L max) | 53.4mm |
| Pin length (Lc max) | 57.8mm |
| Inner plate depth (H2 max) | 33.2mm |
| Plate thickness (T max) | 6.0/4.8mm |
| Ultimate tensile strength (Q min) kN/LB | 160.0/36364 |
| Average tensile strength (Q0) kN | 178 |
| Weight per meter (q) kg/m | 7.1 |
