SKU: 24B-1-SNX-NO30-RENOLD
Renold SYNO 24B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/2 inch Pitch
Renold SYNO 24B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/2 inch Pitch
Regular price
CHF 254.00
ex VAT
Regular price
Sale price
CHF 254.00
ex VAT
In stock
Price Break
2+
CHF 202.27
5+
CHF 190.90
10+
CHF 188.63
29+
CHF 186.36
49+
CHF 184.08
75+
CHF 181.81
100+
CHF 170.45
200+
CHF 168.18
250+
CHF 165.90
500+
CHF 163.63
1000+
CHF 159.09
Description
Description

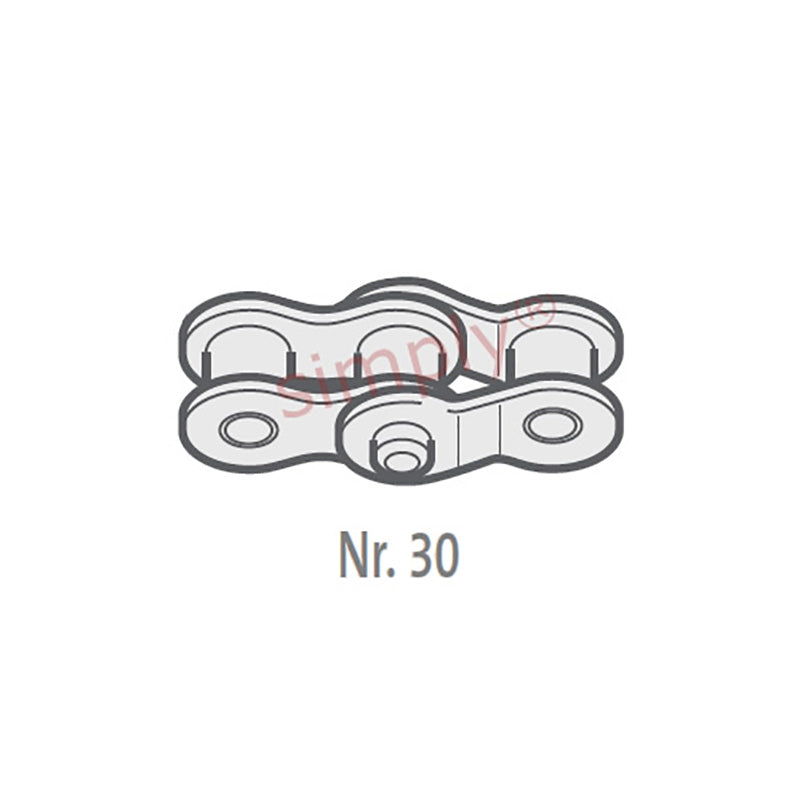

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.4mm |
| Plate Width Inner max (E) | 6.1mm |
| Plate Width Outer max (F) | 5.08mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H1) | 52.6mm |
| Connecting Link Extension max (J) | 6.8mm |
| ISO606 Tensile Strength min | 160000 N |
| Weight | 0.09kg/m |
