SKU: 24B-1-SYN-NO4-RENOLD
Renold Synergy 24B-1-NO4 BS Simplex Chain Inner Link 1-1/2 inch Pitch
Renold Synergy 24B-1-NO4 BS Simplex Chain Inner Link 1-1/2 inch Pitch
Regular price
CHF 98.00
ex VAT
Regular price
Sale price
CHF 98.00
ex VAT
In stock
Price Break
2+
CHF 77.80
5+
CHF 73.43
10+
CHF 72.56
29+
CHF 71.68
49+
CHF 70.81
75+
CHF 69.94
100+
CHF 65.56
200+
CHF 64.69
250+
CHF 63.82
500+
CHF 62.94
1000+
CHF 61.19
Description
Description

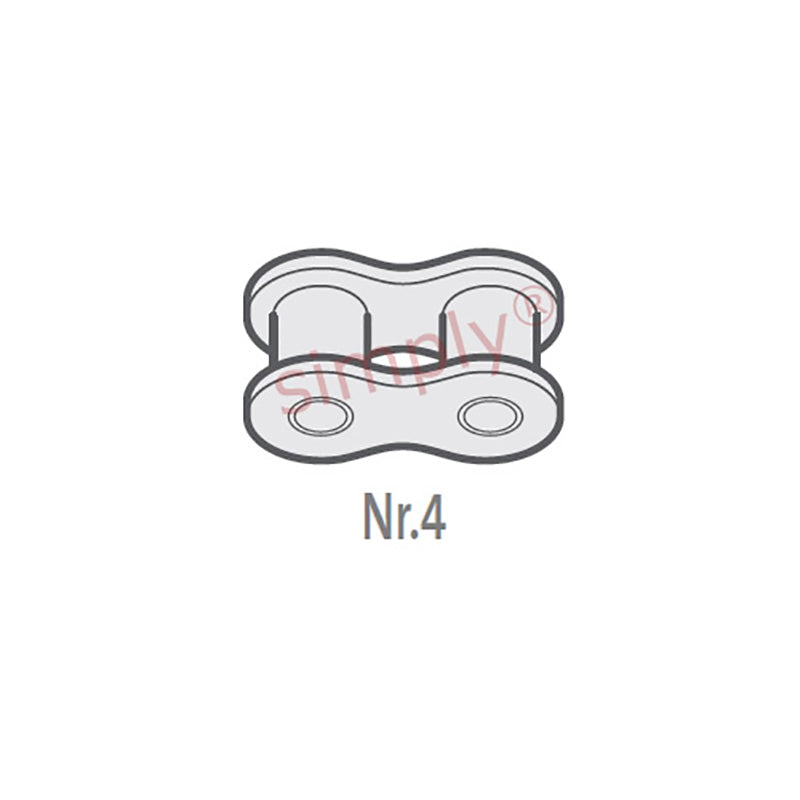

| Renold No. 4 European (BS) Simplex Connecting Link: These are complete assemblies for use with all sizes and types of chain. The unit consists of two inner plates pressed on to the bushes which carry the rollers. (Inner links for use with bush chains have no rollers). |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.4mm |
| Plate Width Inner max (E) | 6.1mm |
| Plate Width Outer max (F) | 5.08mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H1) | 52.6mm |
| Connecting Link Extension max (J) | 6.8mm |
| ISO606 Tensile Strength min | 160000 N |
| Weight | 7.45kg/m |
