SKU: 24B-3-SD-NO26-RENOLD
Renold SD 24B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/2 inch Pitch
Renold SD 24B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/2 inch Pitch
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
In stock
Price Break
2+
CHF 33.98
5+
CHF 32.07
10+
CHF 31.69
29+
CHF 31.31
49+
CHF 30.92
75+
CHF 30.54
100+
CHF 28.63
200+
CHF 28.25
250+
CHF 27.87
500+
CHF 27.49
1000+
CHF 26.73
Description
Description

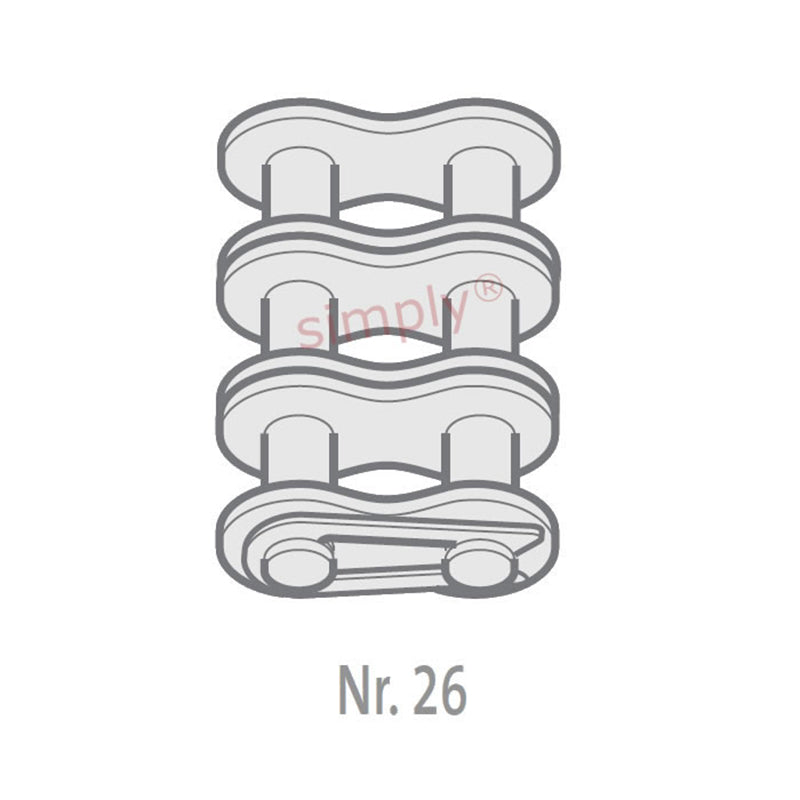

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.3mm |
| Plate Width Inner max (E) | 6mm |
| Plate Width Outer max (F) | 5.2mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H1) | 143.1mm |
| Connecting Link Extension max (J) | 12.6mm |
| ISO606 Tensile Strength min | 460000 N |
| Weight | 0.28kg/m |
