SKU: 25-3-5MTR-MB

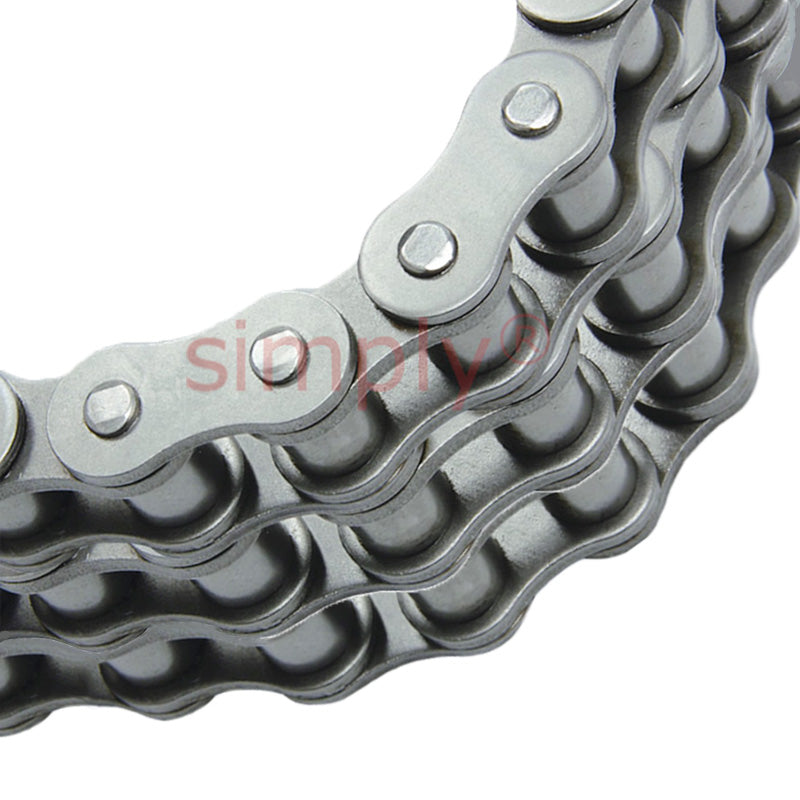

Branded ANSI/ASA25-3 Triplex Roller Chain 1/4 inch Pitch 5 Metres - Allow 2-3 Days
Branded ANSI/ASA25-3 Triplex Roller Chain 1/4 inch Pitch 5 Metres - Allow 2-3 Days
Regular price
CHF 323.00
ex VAT
Regular price
Sale price
CHF 323.00
ex VAT
In stock
Price Break
2+
CHF 285.33
5+
CHF 273.80
10+
CHF 268.04
29+
CHF 259.39
49+
CHF 253.62
75+
CHF 239.21
100+
CHF 201.75
200+
CHF 0.00
250+
CHF 0.00
500+
CHF 0.00
1000+
CHF 0.00
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 6.35mm = 0.25 (1/4) inch
Technical
Technical
| Pitch (P) | 6.35mm = 0.25 (1/4) inch |
|---|---|
| Roller Diameter (D1 max) | 3.3mm |
| Width between inner plates (B1 min) | 3.18mm |
| Pin dia meter (D2 max) | 2.31mm |
| Pin length (L max) | 14.5mm |
| Pin length (Lc max) | 15mm |
| Inner plate depth (H2 max) | 6mm |
| Plate thickness (T max) | 0.8mm |
| Ultimate tensile strength (Q min) kN/LB | 7.0/1574 |
| Average tensile strength (Q0) kN | 8.6 |
| Transverse pitch (Pt) mm | 6.4 |
| Weight per meter (q) kg/m | 0.28 |
