SKU: 2560X/2526X-TIM

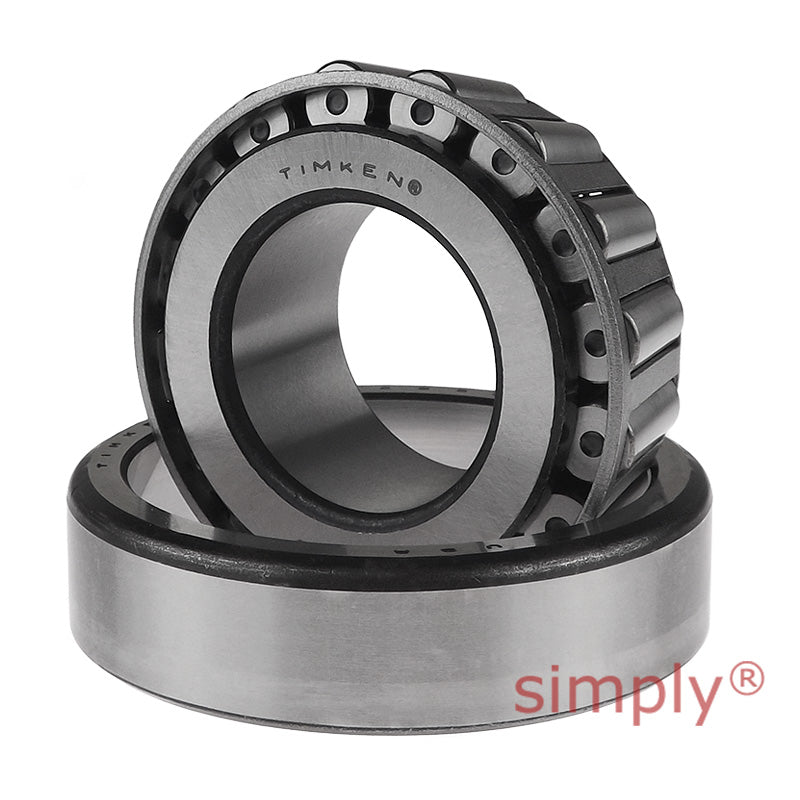

Timken 2560X/2526X TS Single-Row Taper Roller Bearing 1.1811x2.8346x0.9375 inch
Timken 2560X/2526X TS Single-Row Taper Roller Bearing 1.1811x2.8346x0.9375 inch
Regular price
CHF 546.69
ex VAT
Regular price
Sale price
CHF 546.69
ex VAT
In stock
Price Break
10+
CHF 486.55
19+
CHF 459.22
29+
CHF 453.75
39+
CHF 448.29
49+
CHF 442.82
74+
CHF 437.35
99+
CHF 410.02
199+
CHF 404.55
249+
CHF 399.08
499+
CHF 393.62
999+
CHF 382.68
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 30mm = 1.181 inch
- Outside Diameter:
- 72mm = 2.835 inch
- Width:
- 23.81mm = 0.937 (15/16) inch
Technical
Technical
| d | 30mm = 1.1811 inch |
|---|---|
| D | 72mm = 2.8346 inch |
| T | 23.812mm = 0.9375 inch |
| Dynamic (1) C1 | 77500N |
| Factors (5) e | 0.27 |
| Factors (5) Y | 2.19 |
| Dynamic (2) C90 | 20100N |
| Dynamic (2) Ca90 | 9410N |
| Factors (5) K | 2.14 |
| Static C0 | 94400N |
| Bearing B | 25.357mm = 0.9983 inch |
| Bearing C | 19.05mm = 0.75 inch |
| Bearing a(3) | -8.6mm = -0.34 inch |
| Shaft max shaft fillet radius R(4) | 2mm = 0.08 inch |
| Shaft backing shoulder diameter da | 36mm = 1.42 inch |
| Shaft backing shoulder diameter db | 39.5mm = 1.56 inch |
| Housing backing shoulder diameter r(4) | 2mm = 0.08 inch |
| Housing backing shoulder diameter Da | 65mm = 2.56 inch |
| Housing backing shoulder diameter Db | 61mm = 2.4 inch |
| Cage Aa | 0.9mm = 0.04 inch |
| Cage Ab | 0.8mm = 0.03 inch |
| G1 | 23.6 |
| G2 | 9.63 |
| Cg | 0.0656 |
