SKU: 30220U-NTN

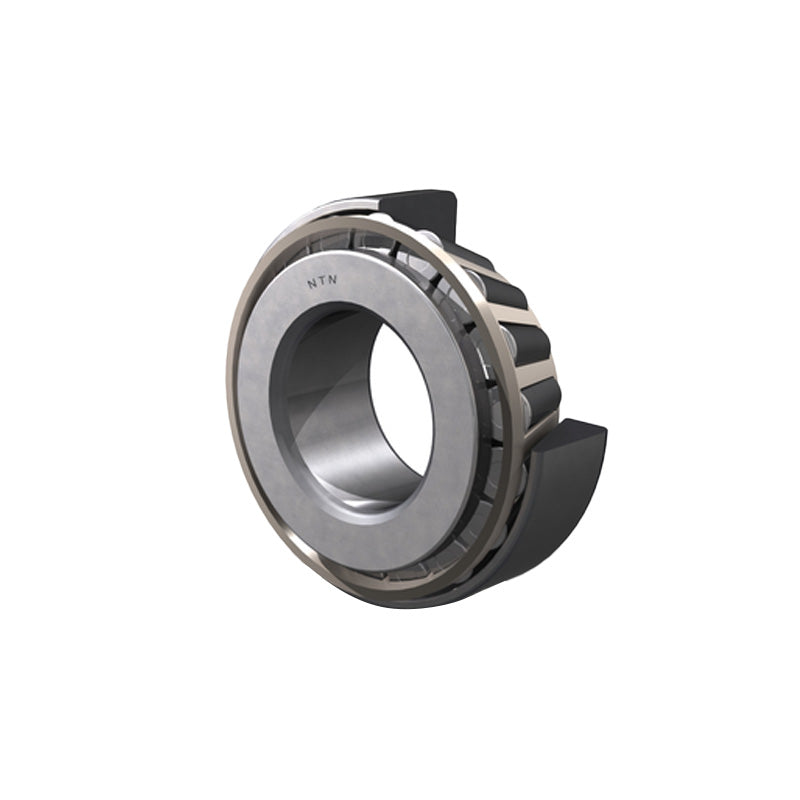

NTN 30220U Tapered Roller Bearing Cup and Cone Set 100x180x37mm
NTN 30220U Tapered Roller Bearing Cup and Cone Set 100x180x37mm
Regular price
CHF 175.00
ex VAT
Regular price
Sale price
CHF 175.00
ex VAT
In stock
Price Break
3+
CHF 139.32
5+
CHF 131.49
10+
CHF 129.93
25+
CHF 128.36
49+
CHF 126.80
74+
CHF 125.23
99+
CHF 117.41
199+
CHF 115.84
249+
CHF 114.27
499+
CHF 112.71
999+
CHF 109.58
Share this product
Description
Description
NTN Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads.
Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 37mm
- Style:
- Taper Roller Bearing
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 180mm |
| T | 37mm |
| B | 34mm |
| C | 29mm |
| r<sub>s</sub> min | 3mm |
| r<sub>ls</sub> min | 2.5mm |
| --- | Speeds and loads |
| Dynamic load C<sub>r</sub> | 286kN |
| Static load C<sub>or</sub> | 335kN |
| Fatigue Load limit C<sub>u</sub> | 37kN |
| Allowable Speed in grease | 2000rpm |
| Allowable Speed in oil | 2700rpm |
| --- | Abutment dimensions |
| ISO Dimension series | 3FB |
| d<sub>a</sub> min | 114mm |
| d<sub>b</sub> max | 115.5mm |
| D<sub>a</sub> max | 168mm |
| D<sub>a</sub> min | 154.5mm |
| D<sub>b</sub> min | 169.5mm |
| S<sub>a</sub> min | 5mm |
| S<sub>b</sub> min | 8mm |
| r<sub>as</sub> max | 2.5mm |
| r<sub>1as</sub> max | 2mm |
| Load center a | 36mm |
| Constant e | 0.42mm |
| Y<sub>2</sub> | 1.43mm |
| Y<sub>0</sub> | 0.79mm |
| Weight | 3.76kg |
