SKU: 306703.2Z.MB

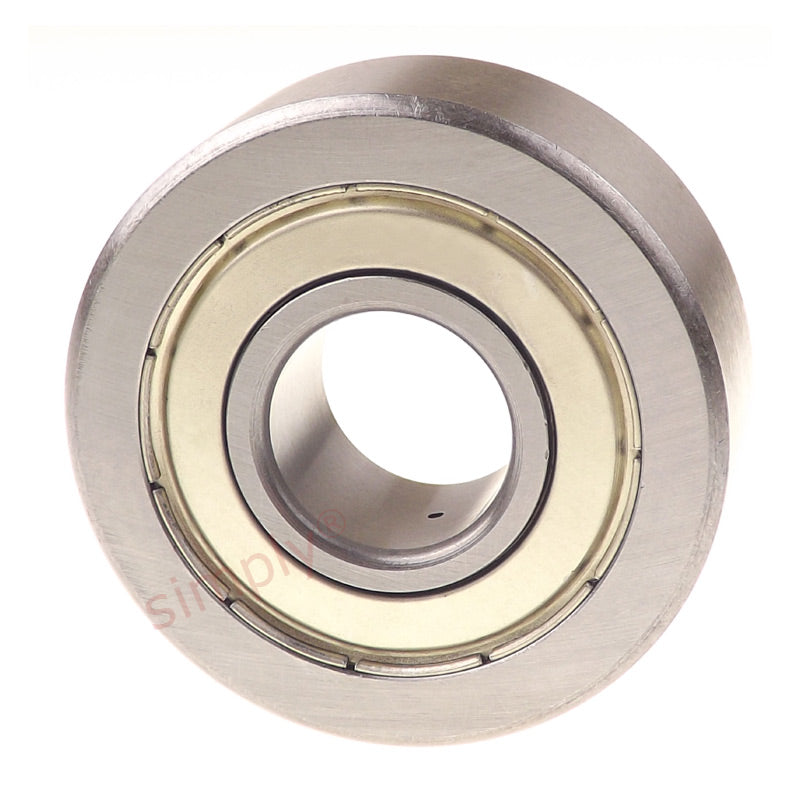

3067032Z Double Row Metal Shielded Cam Roller Cylindrical Outer 17x52x22.2mm
3067032Z Double Row Metal Shielded Cam Roller Cylindrical Outer 17x52x22.2mm
Regular price
CHF 41.00
ex VAT
Regular price
Sale price
CHF 41.00
ex VAT
In stock
Price Break
10+
CHF 32.57
19+
CHF 30.74
29+
CHF 30.38
39+
CHF 30.01
49+
CHF 29.65
74+
CHF 29.28
99+
CHF 27.45
199+
CHF 27.08
249+
CHF 26.72
499+
CHF 26.35
999+
CHF 25.62
Share this product
Description
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 52mm
- Width:
- 22.2mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| Bore | 17mm |
|---|---|
| Outside Diameter | 52mm |
| Width | 22.2mm |
| Max rad R | 400mm |
| r1r2 | 1mm |
| Limiting speed | 9500 rpm |
| Dynamic load as cam roller | 21.1 kN |
| Static load as cam roller | 12.5 kN |
| Dynamic load as bearing | 17.2 kN |
| Static load as bearing | 11 kN |
| Max radial load | 15.5 kN |
| Max static load | 22.2 kN |
| Weight | 0.2 kg |
