SKU: 306704.2Z.NKE

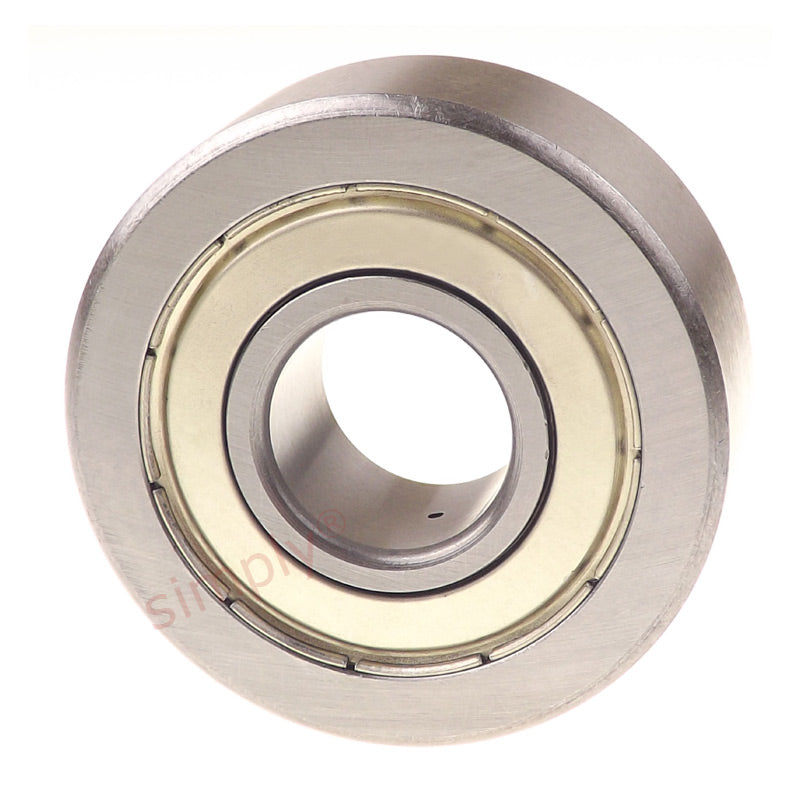

NKE 3067042Z Double Row Metal Shielded Cam Roller Cylindrical Outer 20x62x22.2mm
NKE 3067042Z Double Row Metal Shielded Cam Roller Cylindrical Outer 20x62x22.2mm
Regular price
CHF 56.60
ex VAT
Regular price
Sale price
CHF 56.60
ex VAT
In stock
Price Break
10+
CHF 50.37
19+
CHF 47.54
29+
CHF 46.98
39+
CHF 46.41
49+
CHF 45.85
74+
CHF 45.28
99+
CHF 42.45
199+
CHF 41.88
249+
CHF 41.32
499+
CHF 40.75
999+
CHF 39.62
Couldn't load pickup availability
Description
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 62mm
- Width:
- 22.2mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| Bore | 20mm |
|---|---|
| Outside Diameter | 62mm |
| Width | 22.2mm |
| Max rad R | 400mm |
| r1r2 | 1.1mm |
| Limiting speed | 9000 rpm |
| Dynamic load as cam roller | 24.5 kN |
| Static load as cam roller | 15.8 kN |
| Dynamic load as bearing | 21.1 kN |
| Static load as bearing | 14.5 kN |
| Max radial load | 27 kN |
| Max static load | 29 kN |
| Weight | 0.34 kg |
