SKU: 306705.2Z.MB
3067052Z Double Row Metal Shielded Cam Roller Cylindrical Outer 25x72x25.4mm
3067052Z Double Row Metal Shielded Cam Roller Cylindrical Outer 25x72x25.4mm
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
10+
CHF 23.70
19+
CHF 22.37
29+
CHF 22.10
39+
CHF 21.84
49+
CHF 21.57
74+
CHF 21.30
99+
CHF 19.97
199+
CHF 19.71
249+
CHF 19.44
499+
CHF 19.17
999+
CHF 18.64
Share this product
Description
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 72mm
- Width:
- 25.4mm
- Seals / Shields:
- Metal Shielded

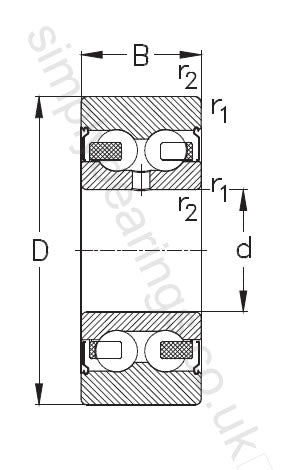

Technical
Technical
| Bore | 25mm |
|---|---|
| Outside Diameter | 72mm |
| Width | 25.4mm |
| Max rad R | 400mm |
| r1r2 | 101mm |
| Limiting speed | 7900 rpm |
| Dynamic load as cam roller | 32.5 kN |
| Static load as cam roller | 21.6 kN |
| Dynamic load as bearing | 27.5 kN |
| Static load as bearing | 19.5 kN |
| Max radial load | 34.5 kN |
| Max static load | 39 kN |
| Weight | 0.5 kg |
