SKU: 306708.2Z.NKE

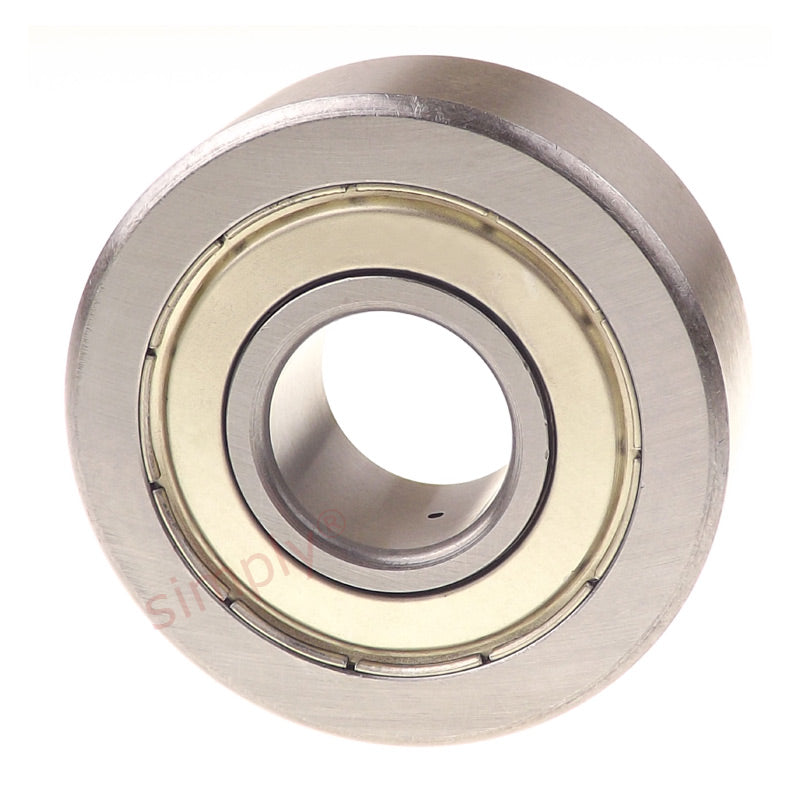

NKE 3067082Z Double Row Metal Shielded Cam Roller Cylindrical Outer 40x100x36.5mm
NKE 3067082Z Double Row Metal Shielded Cam Roller Cylindrical Outer 40x100x36.5mm
Regular price
CHF 107.59
ex VAT
Regular price
Sale price
CHF 107.59
ex VAT
In stock
Price Break
10+
CHF 95.76
19+
CHF 90.38
29+
CHF 89.30
39+
CHF 88.22
49+
CHF 87.15
74+
CHF 86.07
99+
CHF 80.69
199+
CHF 79.62
249+
CHF 78.54
499+
CHF 77.46
999+
CHF 75.31
Couldn't load pickup availability
Description
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 100mm
- Width:
- 36.5mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| Bore | 40mm |
|---|---|
| Outside Diameter | 100mm |
| Width | 36.5mm |
| Max rad R | 400mm |
| r1r2 | 1.5mm |
| Limiting speed | 4700 rpm |
| Dynamic load as cam roller | 69 kN |
| Static load as cam roller | 49.5 kN |
| Dynamic load as bearing | 56 kN |
| Static load as bearing | 42 kN |
| Max radial load | 70 kN |
| Max static load | 84 kN |
| Weight | 1.2 kg |
