SKU: 307NR-SKF
SKF 307NR Open Type Filling Slot Ball Bearing and Snap Ring 35x80x21mm
SKF 307NR Open Type Filling Slot Ball Bearing and Snap Ring 35x80x21mm
Regular price
CHF 84.00
ex VAT
Regular price
Sale price
CHF 84.00
ex VAT
In stock
Price Break
10+
CHF 66.86
19+
CHF 63.10
29+
CHF 62.35
39+
CHF 61.60
49+
CHF 60.85
74+
CHF 60.10
99+
CHF 56.34
199+
CHF 55.59
249+
CHF 54.84
499+
CHF 54.09
999+
CHF 52.58
Description
Description
|
SKF Filling Slot Ball Bearings with Snap Ring: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. This option is supplied with snap ring groove and snap ring. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring

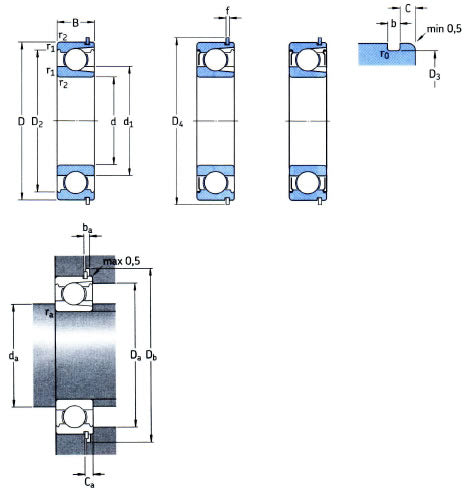

Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| Dynamic load C | 39.1 kN |
| Static load Co | 28.5 kN |
| Fatigue load limit Pu | 1.2 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 10000 rpm |
| Weight | 0.48 kg |
| Snap ring | SP80 |
| d1 | 43.7mm |
| D2 | 69.2mm |
| D3 | 76.81mm |
| D4 | 86.6mm |
| f | 1.7mm |
| b | 1.9mm |
| C | 3.28mm |
| ro max | 0.6mm |
| r1r2 min | 1.5mm |
| da min | 43mm |
| Da max | 72mm |
| Db min | 88mm |
| ba min | 2.2mm |
| Ca max | 4.98mm |
| ra max | 1.5mm |
