SKU: 308-SKF

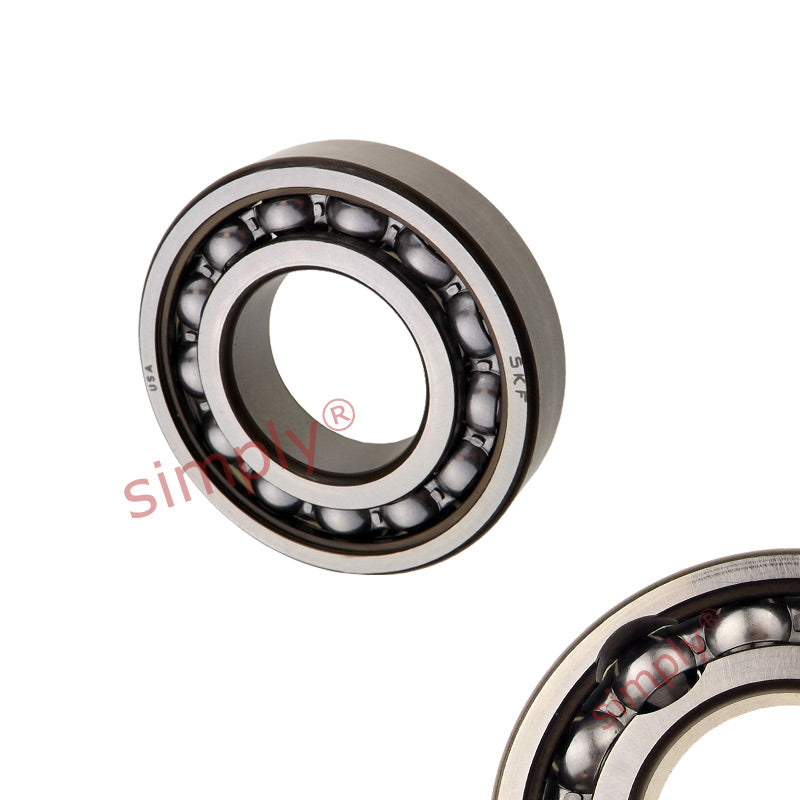

SKF 308 Open Type Filling Slot Ball Bearing 40x90x23mm
SKF 308 Open Type Filling Slot Ball Bearing 40x90x23mm
Regular price
CHF 96.00
ex VAT
Regular price
Sale price
CHF 96.00
ex VAT
In stock
Price Break
10+
CHF 75.94
19+
CHF 71.67
29+
CHF 70.82
39+
CHF 69.97
49+
CHF 69.11
74+
CHF 68.26
99+
CHF 63.99
199+
CHF 63.14
249+
CHF 62.29
499+
CHF 61.44
999+
CHF 59.73
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 46.8 kN |
| Static load Co | 36 kN |
| Fatigue load limit Pu | 1.53 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.64 kg |
| d1 | 50.5mm |
| D2 | 77.7mm |
| r1r2 min | 1.5mm |
| da min | 48mm |
| Da max | 82mm |
| ra max | 1.5mm |
