SKU: 308-ZNR-SKF

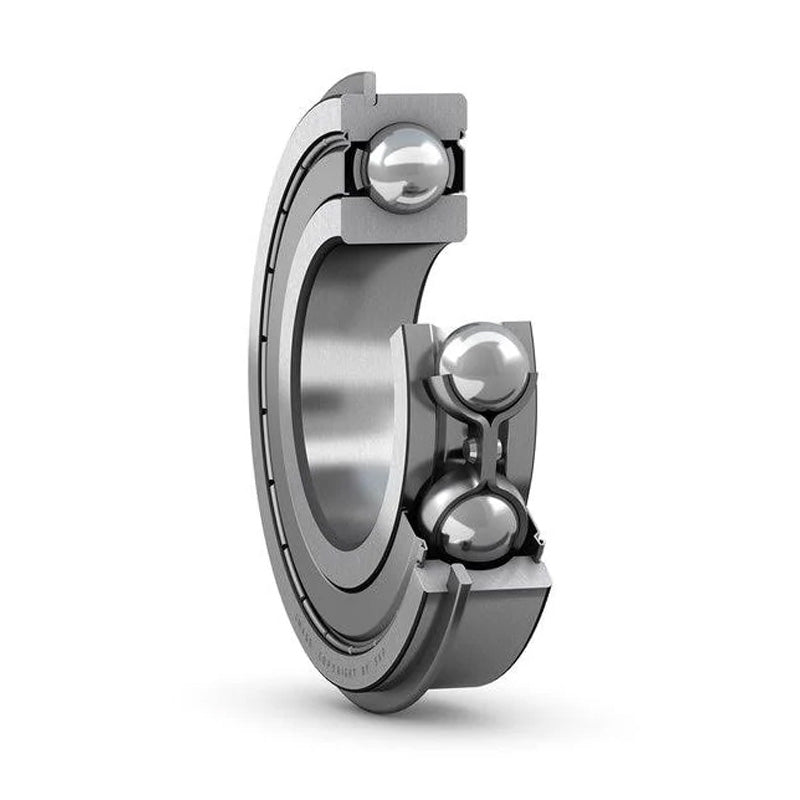

SKF 308ZNR Metal Shielded Filling Slot Ball Bearing and Snap Ring 40x90x23mm
SKF 308ZNR Metal Shielded Filling Slot Ball Bearing and Snap Ring 40x90x23mm
Regular price
CHF 94.00
ex VAT
Regular price
Sale price
CHF 94.00
ex VAT
In stock
Price Break
10+
CHF 74.41
19+
CHF 70.23
29+
CHF 69.39
39+
CHF 68.56
49+
CHF 67.72
74+
CHF 66.88
99+
CHF 62.70
199+
CHF 61.87
249+
CHF 61.03
499+
CHF 60.20
999+
CHF 58.52
Description
Description
|
SKF Filling Slot Ball Bearings with Snap Ring: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. This option is supplied with snap ring groove and snap ring. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 46.8 kN |
| Static load Co | 36 kN |
| Fatigue load limit Pu | 1.53 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.64 kg |
| Snap ring | SP90 |
| d1 | 50.5mm |
| D2 | 77.7mm |
| D3 | 86.79mm |
| D4 | 96.5mm |
| f | 2.46mm |
| b | 2.7mm |
| C | 3.28mm |
| ro max | 0.6mm |
| r1r2 min | 1.5mm |
| da min | 48mm |
| Da max | 82mm |
| Db min | 98mm |
| ba min | 3mm |
| Ca max | 5.74mm |
| ra max | 1.5mm |
