SKU: 309-SKF

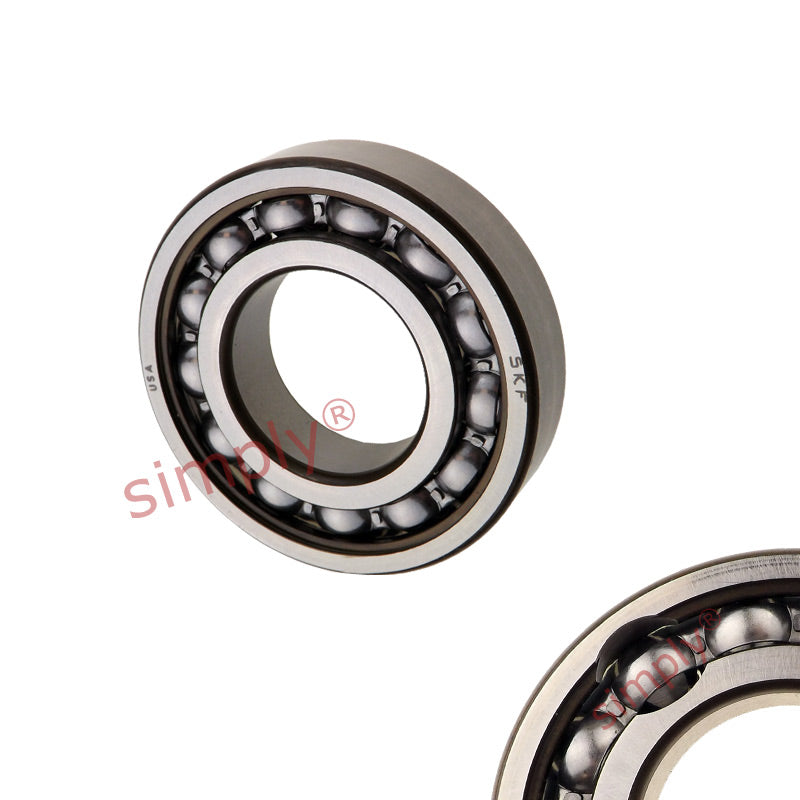

SKF 309 Open Type Filling Slot Ball Bearing 45x100x25mm
SKF 309 Open Type Filling Slot Ball Bearing 45x100x25mm
Regular price
CHF 120.00
ex VAT
Regular price
Sale price
CHF 120.00
ex VAT
In stock
Price Break
10+
CHF 95.04
19+
CHF 89.70
29+
CHF 88.64
39+
CHF 87.57
49+
CHF 86.50
74+
CHF 85.43
99+
CHF 80.09
199+
CHF 79.03
249+
CHF 77.96
499+
CHF 76.89
999+
CHF 74.75
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 59.4 kN |
| Static load Co | 46.5 kN |
| Fatigue load limit Pu | 1.96 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.88 kg |
| d1 | 55.9mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 53mm |
| Da max | 92mm |
| ra max | 1.5mm |
