SKU: 309-Z-SKF

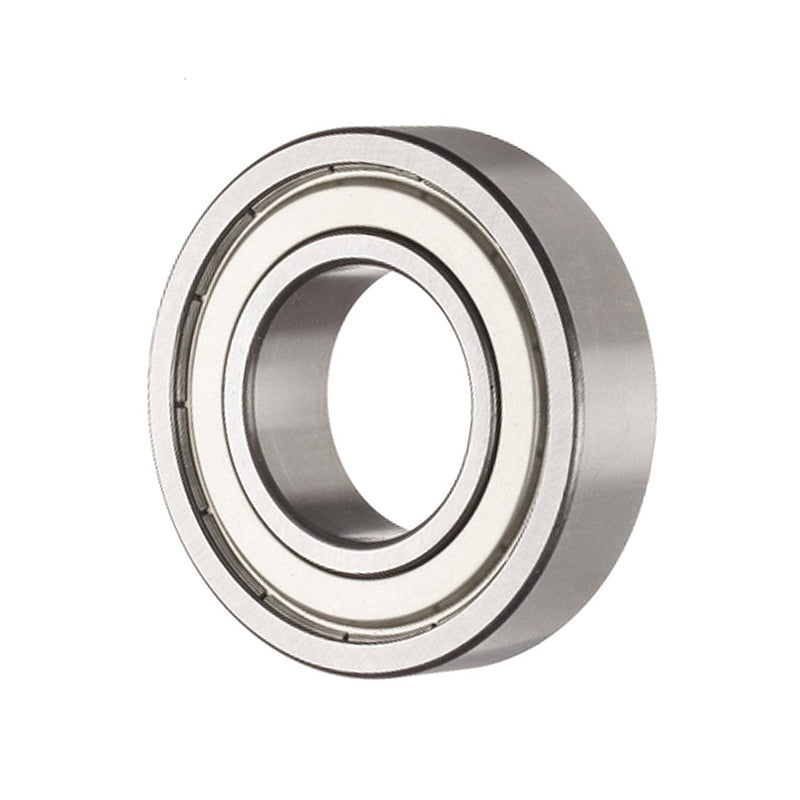

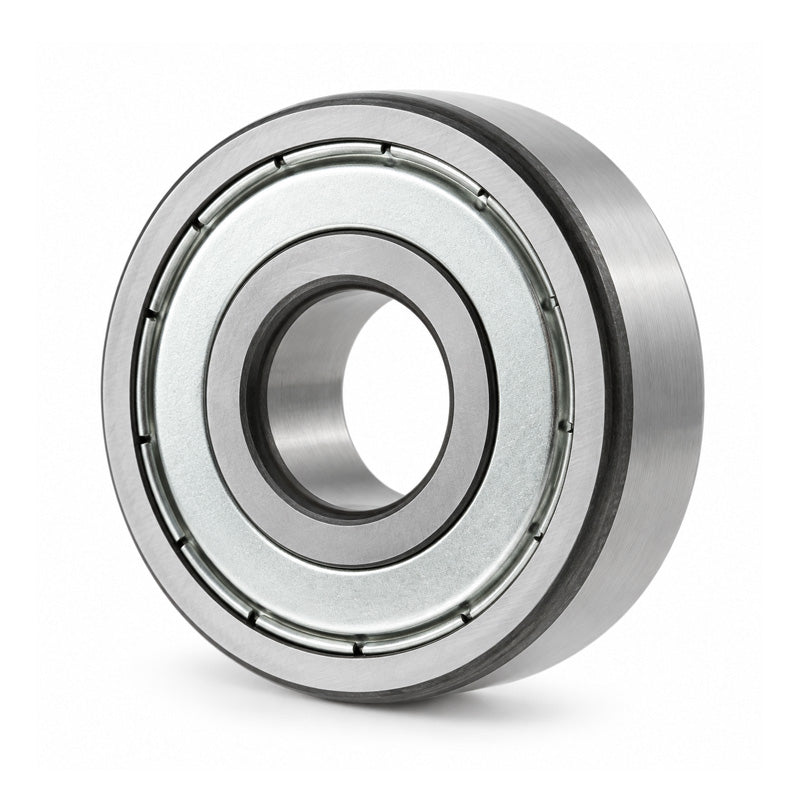

SKF 309Z Metal Shielded Filling Slot Ball Bearing 45x100x25mm
SKF 309Z Metal Shielded Filling Slot Ball Bearing 45x100x25mm
Regular price
CHF 112.04
ex VAT
Regular price
Sale price
CHF 112.04
ex VAT
In stock
Price Break
10+
CHF 99.72
19+
CHF 94.11
29+
CHF 92.99
39+
CHF 91.87
49+
CHF 90.75
74+
CHF 89.63
99+
CHF 84.03
199+
CHF 82.91
249+
CHF 81.79
499+
CHF 80.67
999+
CHF 78.43
Couldn't load pickup availability
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 59.4 kN |
| Static load Co | 46.5 kN |
| Fatigue load limit Pu | 1.96 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.88 kg |
| d1 | 55.9mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 53mm |
| Da max | 92mm |
| ra max | 1.5mm |
