SKU: 3095-100G-RHP
RHP 3095-100G Spherical Outer Full Width Bearing Insert 100mm Bore 200mm Outside Diameter
RHP 3095-100G Spherical Outer Full Width Bearing Insert 100mm Bore 200mm Outside Diameter
Regular price
CHF 565.00
ex VAT
Regular price
Sale price
CHF 565.00
ex VAT
In stock
Price Break
10+
CHF 450.09
20+
CHF 424.81
30+
CHF 419.75
40+
CHF 414.69
50+
CHF 409.64
75+
CHF 404.58
100+
CHF 379.29
200+
CHF 374.24
250+
CHF 369.18
500+
CHF 364.12
1000+
CHF 354.01
Description
Description
|

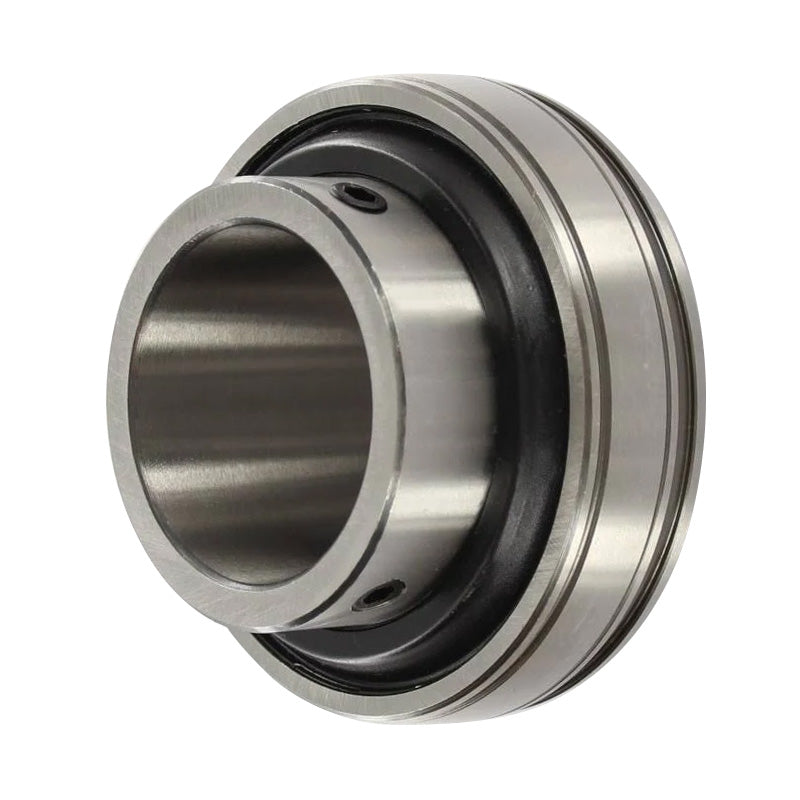

RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 200mm
- Style:
- 3095
Technical
Technical
| Bore | 100mm |
|---|---|
| D | 200mm |
| C | 45mm |
| B | 117.48mm |
| s | 49.27mm |
| d1 | 130.43mm |
| M | 19.05mm |
| r | 2.5mm |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 9.53 kg |
