SKU: 3095-4G-RHP

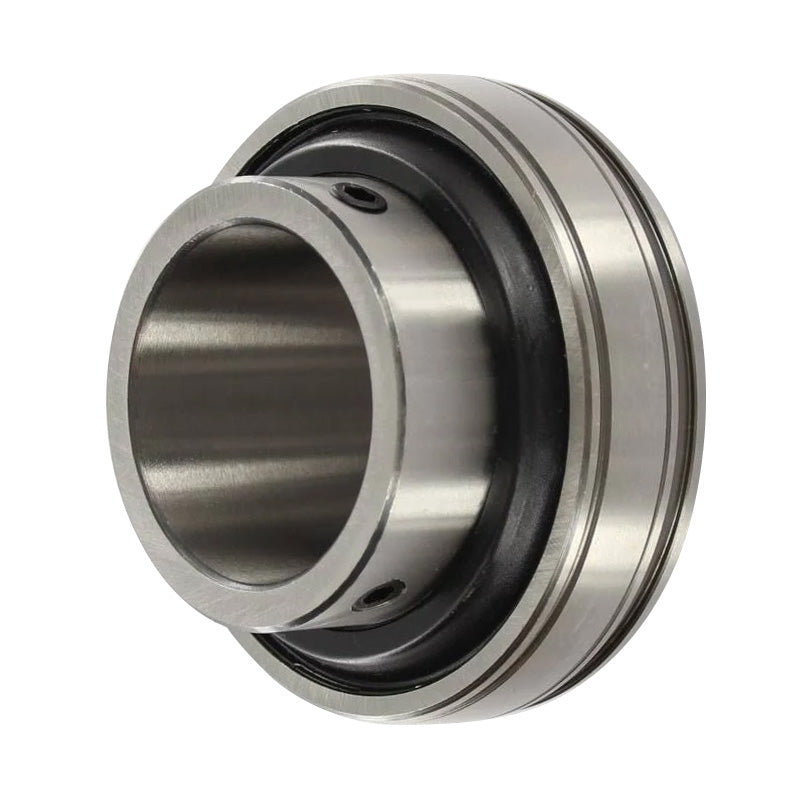

RHP 3095-4G Spherical Outer Full Width Bearing Insert 4 inch Bore 200mm Outside Diameter
RHP 3095-4G Spherical Outer Full Width Bearing Insert 4 inch Bore 200mm Outside Diameter
Regular price
CHF 599.00
ex VAT
Regular price
Sale price
CHF 599.00
ex VAT
In stock
Price Break
10+
CHF 477.47
20+
CHF 450.64
30+
CHF 445.28
40+
CHF 439.91
50+
CHF 434.55
75+
CHF 429.18
100+
CHF 402.36
200+
CHF 396.99
250+
CHF 391.63
500+
CHF 386.26
1000+
CHF 375.54
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 200mm
- Style:
- 3095
Technical
Technical
| Bore | 4 inch |
|---|---|
| D | 7.874 inch |
| C | 1.772 inch |
| B | 4.625 inch |
| s | 1.94 inch |
| d1 | 5.135 inch |
| M | 0.75 inch |
| r | 0.098 inch |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 9.53 kg |
