SKU: 313-SKF

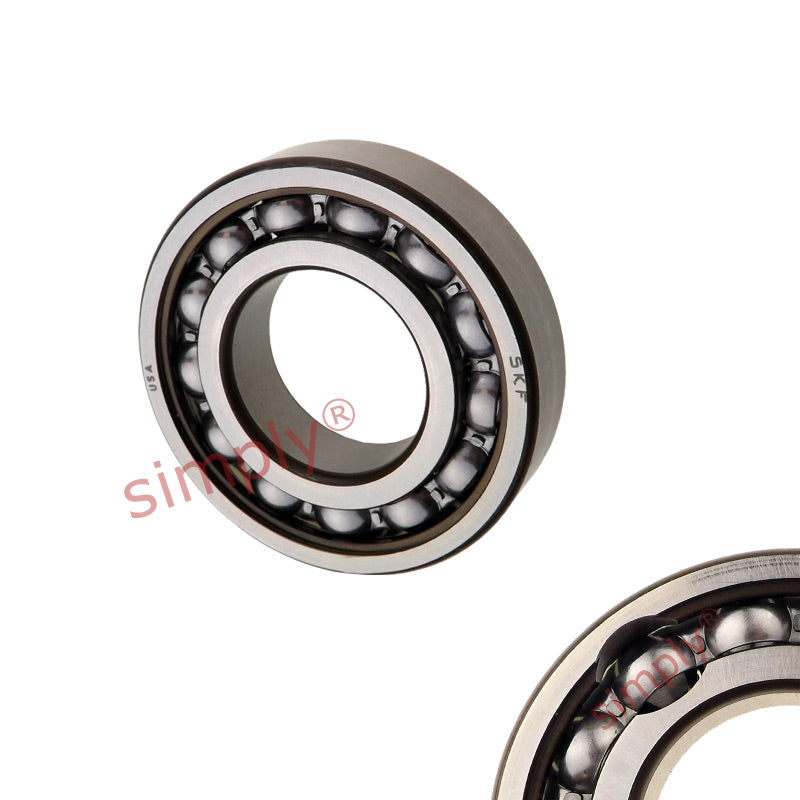

SKF 313 Open Type Filling Slot Ball Bearing 65x140x33mm
SKF 313 Open Type Filling Slot Ball Bearing 65x140x33mm
Regular price
CHF 228.00
ex VAT
Regular price
Sale price
CHF 228.00
ex VAT
In stock
Price Break
10+
CHF 181.48
19+
CHF 171.29
29+
CHF 169.25
39+
CHF 167.21
49+
CHF 165.17
74+
CHF 163.13
99+
CHF 152.93
199+
CHF 150.90
249+
CHF 148.86
499+
CHF 146.82
999+
CHF 142.74
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 102 kN |
| Static load Co | 90 kN |
| Fatigue load limit Pu | 3.75 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.3 kg |
| d1 | 86.8mm |
| D2 | 122mm |
| r1r2 min | 2.1mm |
| da min | 76mm |
| Da max | 129mm |
| ra max | 2mm |
