SKU: 31305-MB

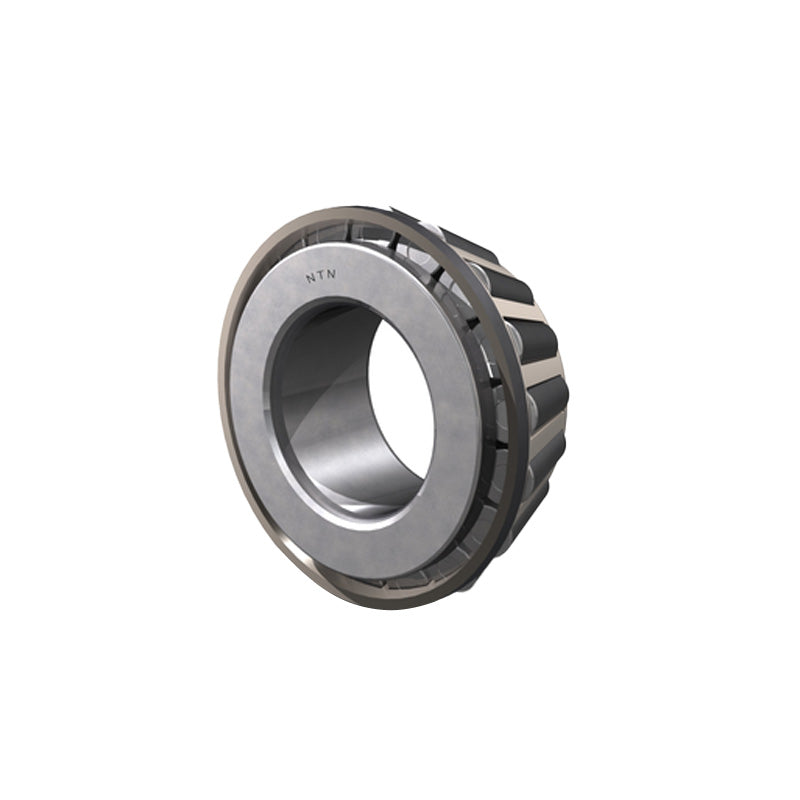

Major Brand 31305 Metric Taper Roller Bearing 25x62x18.3mm
Major Brand 31305 Metric Taper Roller Bearing 25x62x18.3mm
Regular price
CHF 41.00
ex VAT
Regular price
Sale price
CHF 41.00
ex VAT
In stock
Price Break
10+
CHF 32.40
19+
CHF 30.58
29+
CHF 30.22
39+
CHF 29.85
49+
CHF 29.49
74+
CHF 29.12
99+
CHF 27.30
199+
CHF 26.94
249+
CHF 26.57
499+
CHF 26.21
999+
CHF 25.48
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 18.3mm
- Seals / Shields:
- None
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| T | 18.25mm |
| Dynamic load | 38 kN |
| Static load | 40 kN |
| Fatigue load limit Pu | 4.4 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 11000 rpm |
| Mass | 0.26 kg |
| d1 | 45.8mm |
| B | 17mm |
| C | 13mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| a | 20mm |
| da max | 34mm |
| db min | 32mm |
| Da min | 47mm |
| Da max | 55mm |
| Db min | 59mm |
| Ca min | 3mm |
| Cb min | 5mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| e | 0.83 |
| Y | 0.72 |
| Y0 | 0.4 |
