SKU: 31305J2/DF-SKF

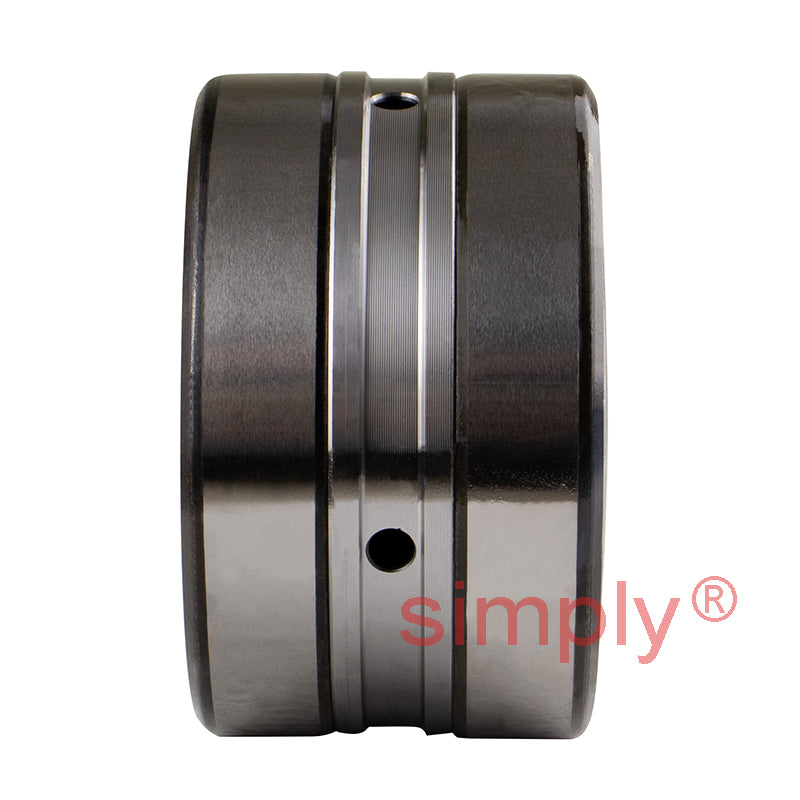

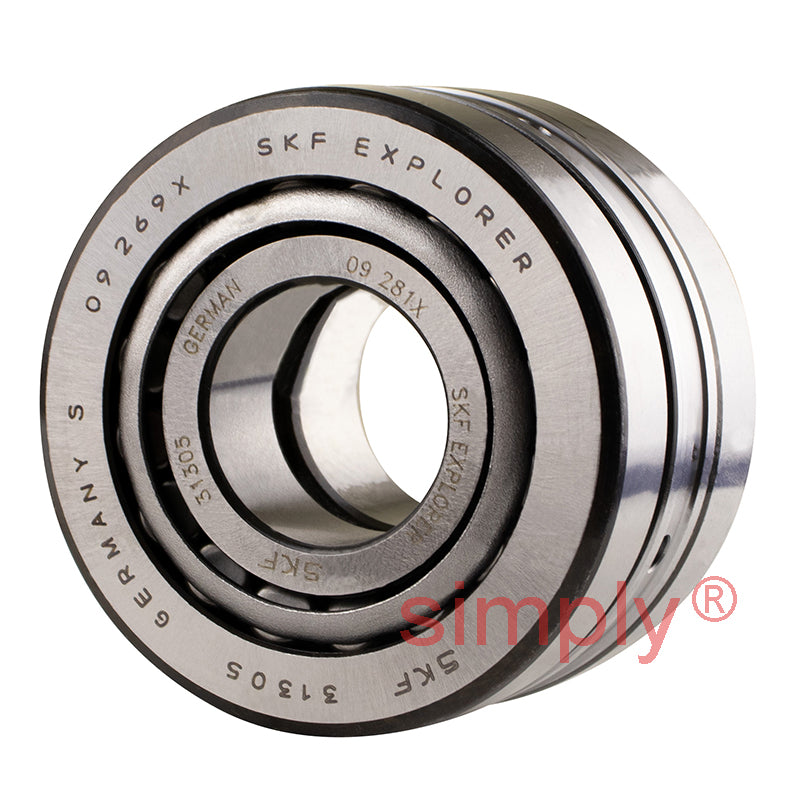

SKF 31305J2/DF Single Row Taper Roller Bearings Paired Face to Face 25x62x36.5mm
SKF 31305J2/DF Single Row Taper Roller Bearings Paired Face to Face 25x62x36.5mm
Regular price
CHF 322.09
ex VAT
Regular price
Sale price
CHF 322.09
ex VAT
In stock
Price Break
10+
CHF 286.66
19+
CHF 270.56
29+
CHF 267.33
39+
CHF 264.11
49+
CHF 260.89
74+
CHF 257.67
99+
CHF 241.57
199+
CHF 238.35
249+
CHF 235.13
499+
CHF 231.90
999+
CHF 225.46
Couldn't load pickup availability
Description
Description
|
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery. Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 36.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| T | 36.5mm |
| Dynamic load | 64.4 kN |
| Static load | 80 kN |
| Fatigue load limit Pu | 8.65 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.55 kg |
| 2B | 34mm |
| r3r4 | 1.5mm |
| r5 | 0.6mm |
| da max | 34mm |
| da min | 47mm |
| Da max | 55mm |
| Ca min | 3mm |
| ra max | 1.5mm |
| rc max | 0.6mm |
| Calculation Factor e | 0.83 |
| Calculation Factor Y1 | 0.81 |
| Calculation Factor Y2 | 1.2 |
| Calculation Factor Y0 | 0.8 |
