SKU: 31311-CDX

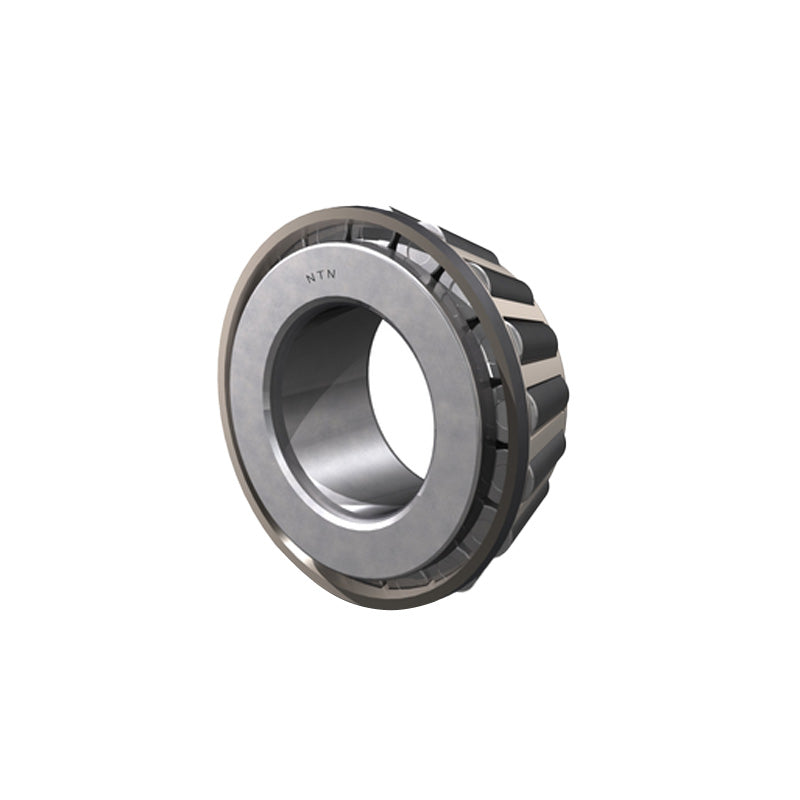

Codex 31311 Metric Single Row Taper Roller Bearing 55x120x31.5mm
Codex 31311 Metric Single Row Taper Roller Bearing 55x120x31.5mm
Regular price
CHF 88.00
ex VAT
Regular price
Sale price
CHF 88.00
ex VAT
In stock
Price Break
10+
CHF 69.35
19+
CHF 65.45
29+
CHF 64.67
39+
CHF 63.89
49+
CHF 63.11
74+
CHF 62.34
99+
CHF 58.44
199+
CHF 57.66
249+
CHF 56.88
499+
CHF 56.10
999+
CHF 54.54
Description
Description
|
Codex Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 31.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| T | 31.5mm |
| Dynamic load | 121kN |
| Static load | 137kN |
| Fatigue load limit Pu | 16.6kN |
| Reference speed | 3800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.55 kg |
| d1 | 88.4mm |
| B | 29mm |
| C | 21mm |
| r1r2 min | 2.5mm |
| r3r4 min | 2mm |
| a | 37mm |
| da max | 68mm |
| db min | 65mm |
| Da min | 94mm |
| Da max | 112mm |
| Db min | 113mm |
| Ca min | 4mm |
| Cb min | 10.5mm |
| ra max | 2mm |
| rb max | 2mm |
| e | 0.83 |
| Y | 0.72 |
| Y0 | 0.4 |
