SKU: 31313J2/QCL7CDF-SKF

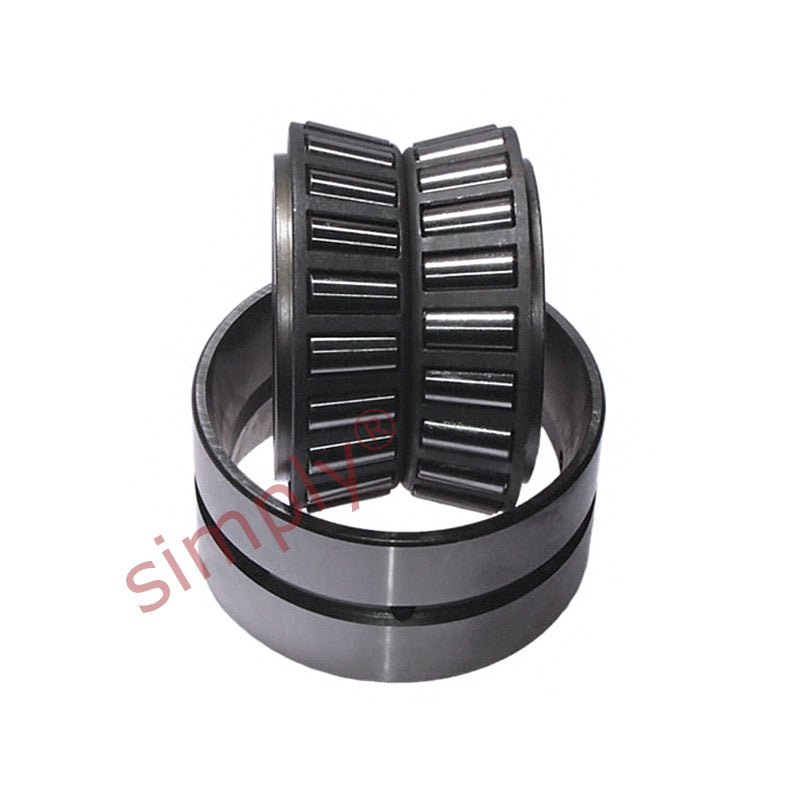

SKF 31313J2/QCL7CDF Single Row Taper Roller Bearings Paired Face to Face 65x140x72mm
SKF 31313J2/QCL7CDF Single Row Taper Roller Bearings Paired Face to Face 65x140x72mm
Regular price
CHF 955.33
ex VAT
Regular price
Sale price
CHF 955.33
ex VAT
In stock
Price Break
10+
CHF 850.24
19+
CHF 802.48
29+
CHF 792.92
39+
CHF 783.37
49+
CHF 773.82
74+
CHF 764.26
99+
CHF 716.50
199+
CHF 706.94
249+
CHF 697.39
499+
CHF 687.84
999+
CHF 668.73
Couldn't load pickup availability
Description
Description
|
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery. Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 72mm
- Seals / Shields:
- None
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| T | 72mm |
| Dynamic load | 281 kN |
| Static load | 380 kN |
| Fatigue load limit Pu | 47.5 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 4800 rpm |
| Weight | 5.05 kg |
| 2B | 66mm |
| r3r4 | 2.5mm |
| r5 | 1mm |
| da max | 80mm |
| da min | 111mm |
| Da max | 128mm |
| Ca min | 5mm |
| ra max | 2mm |
| rc max | 1mm |
| Calculation Factor e | 0.83 |
| Calculation Factor Y1 | 0.81 |
| Calculation Factor Y2 | 1.2 |
| Calculation Factor Y0 | 0.8 |
