SKU: 31316-FAG

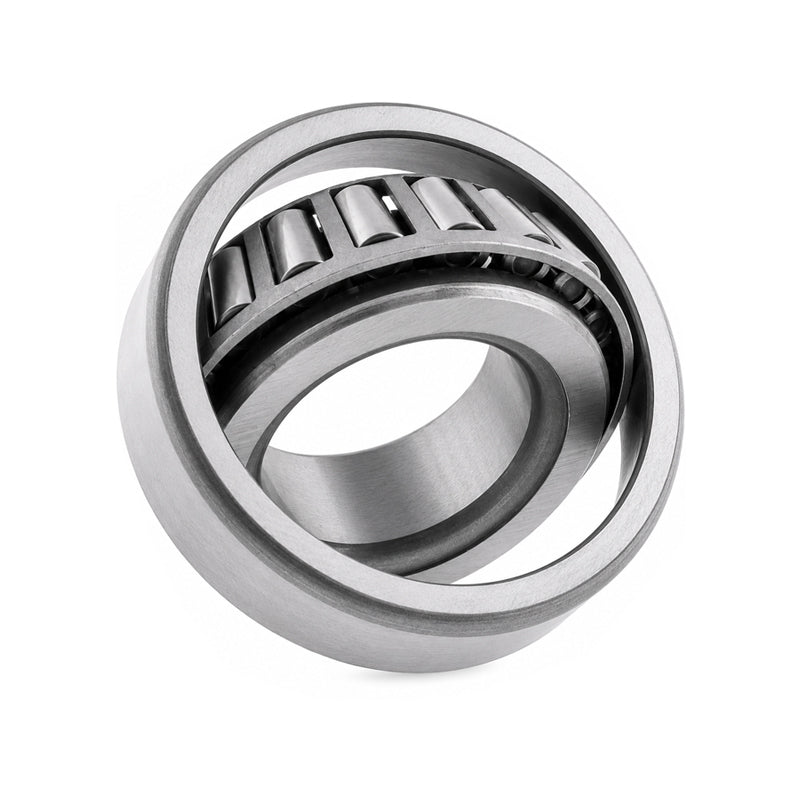

FAG 31316 Metric Taper Roller Bearing 80x170x42.5mm
FAG 31316 Metric Taper Roller Bearing 80x170x42.5mm
Regular price
CHF 434.00
ex VAT
Regular price
Sale price
CHF 434.00
ex VAT
In stock
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 42.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| T | 42.5mm |
| Dynamic load | 224 kN |
| Static load | 265 kN |
| Fatigue load limit Pu | 32 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 4000 rpm |
| Mass | 4.05 kg |
| d1 | 124mm |
| B | 39mm |
| C | 27mm |
| r1r2 min | 3mm |
| r3r4 min | 2.5mm |
| a | 52mm |
| da max | 97mm |
| db min | 92mm |
| Da min | 134mm |
| Da max | 158mm |
| Db min | 159mm |
| Ca min | 6mm |
| Cb min | 15.5mm |
| ra max | 2.5mm |
| rb max | 2mm |
| e | 0.83 |
| Y | 0.72 |
| Y0 | 0.4 |
