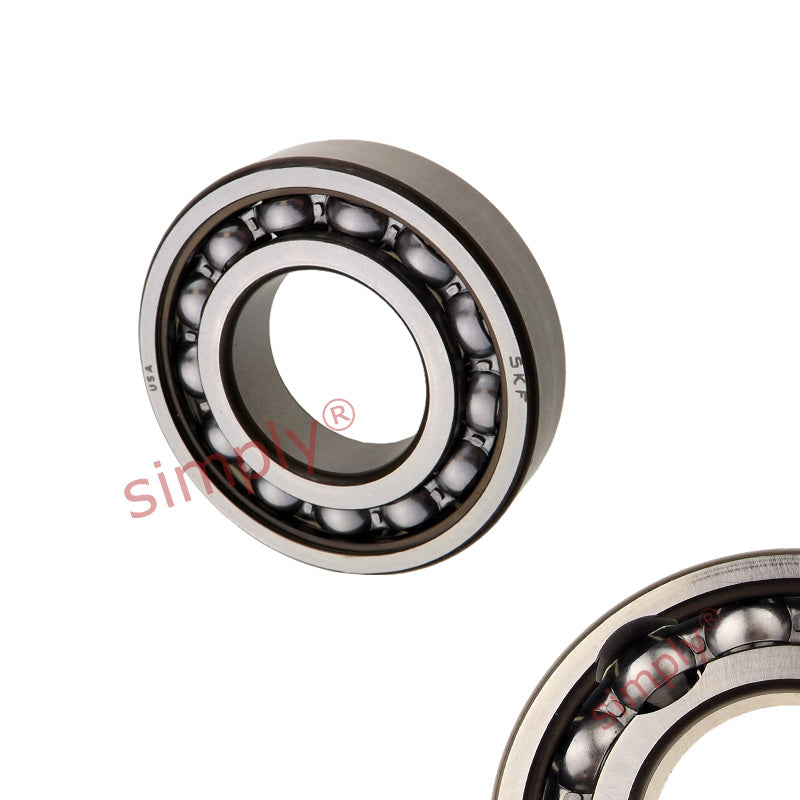

SKF 314 Open Type Filling Slot Ball Bearing 70x150x35mm
SKF 314 Open Type Filling Slot Ball Bearing 70x150x35mm
Regular price
CHF 239.00
ex VAT
Regular price
Sale price
CHF 239.00
ex VAT
In stock
Price Break
10+
CHF 190.21
19+
CHF 179.53
29+
CHF 177.39
39+
CHF 175.25
49+
CHF 173.11
74+
CHF 170.98
99+
CHF 160.29
199+
CHF 158.15
249+
CHF 156.02
499+
CHF 153.88
999+
CHF 149.61
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 114 kN |
| Static load Co | 102 kN |
| Fatigue load limit Pu | 4.15 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.75 kg |
| d1 | 93.2mm |
| D2 | 130mm |
| r1r2 min | 2.1mm |
| da min | 81mm |
| Da max | 139mm |
| ra max | 2mm |
