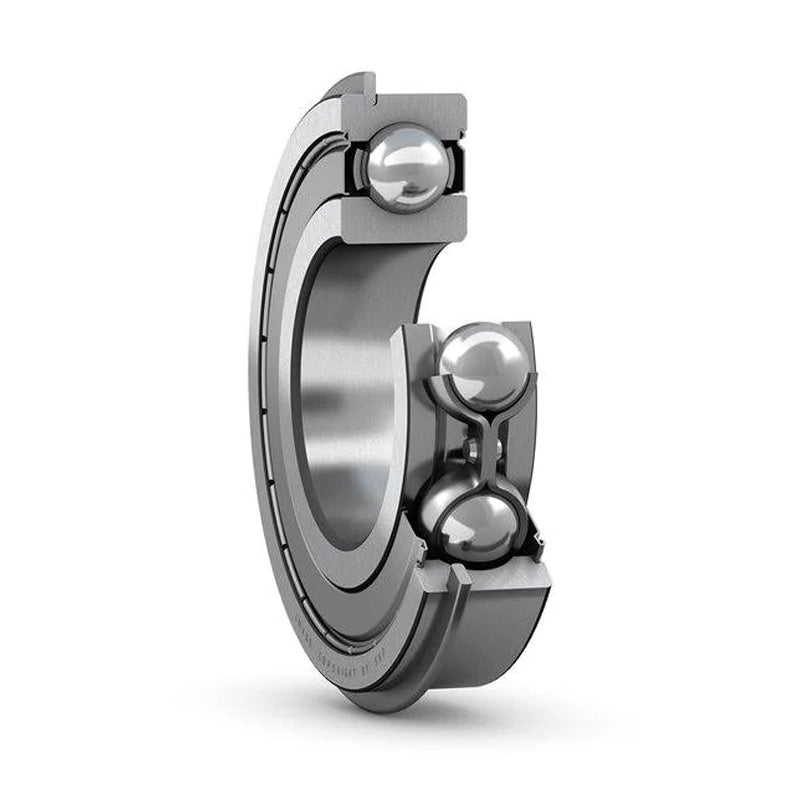

SKF 314ZNR Metal Shielded Filling Slot Ball Bearing and Snap Ring 70x150x35mm
SKF 314ZNR Metal Shielded Filling Slot Ball Bearing and Snap Ring 70x150x35mm
Regular price
CHF 333.00
ex VAT
Regular price
Sale price
CHF 333.00
ex VAT
In stock
Price Break
10+
CHF 265.26
19+
CHF 250.36
29+
CHF 247.38
39+
CHF 244.40
49+
CHF 241.42
74+
CHF 238.44
99+
CHF 223.53
199+
CHF 220.55
249+
CHF 217.57
499+
CHF 214.59
999+
CHF 208.63
Description
Description
|
SKF Filling Slot Ball Bearings with Snap Ring: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. This option is supplied with snap ring groove and snap ring. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 114 kN |
| Static load Co | 102 kN |
| Fatigue load limit Pu | 4.15 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.75 kg |
| Snap ring | SP150 |
| d1 | 87.2mm |
| D2 | 130mm |
| D3 | 145.24mm |
| D4 | 159.7mm |
| f | 2.82mm |
| b | 3.1mm |
| C | 4.9mm |
| ro max | 0.6mm |
| r1r2 min | 2.1mm |
| da min | 81mm |
| Da max | 139mm |
| Db min | 162mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
