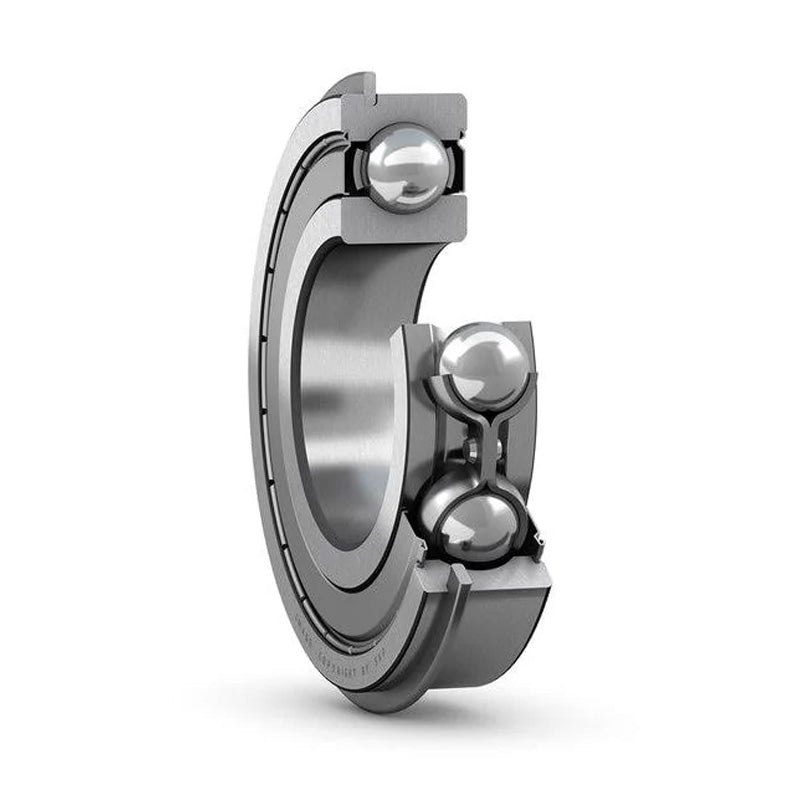

SKF 314NR Open Type Filling Slot Ball Bearing and Snap Ring 70x150x35mm
SKF 314NR Open Type Filling Slot Ball Bearing and Snap Ring 70x150x35mm
Regular price
CHF 315.00
ex VAT
Regular price
Sale price
CHF 315.00
ex VAT
In stock
Price Break
10+
CHF 250.80
19+
CHF 236.71
29+
CHF 233.89
39+
CHF 231.07
49+
CHF 228.25
74+
CHF 225.44
99+
CHF 211.35
199+
CHF 208.53
249+
CHF 205.71
499+
CHF 202.89
999+
CHF 197.26
Description
Description
|
SKF Filling Slot Ball Bearings with Snap Ring: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. This option is supplied with snap ring groove and snap ring. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 114 kN |
| Static load Co | 102 kN |
| Fatigue load limit Pu | 4.15 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.75 kg |
| Snap ring | SP150 |
| d1 | 87.2mm |
| D2 | 130mm |
| D3 | 145.24mm |
| D4 | 159.7mm |
| f | 2.82mm |
| b | 3.1mm |
| C | 4.9mm |
| ro max | 0.6mm |
| r1r2 min | 2.1mm |
| da min | 81mm |
| Da max | 139mm |
| Db min | 162mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
