SKU: 32004X/Q-SKF

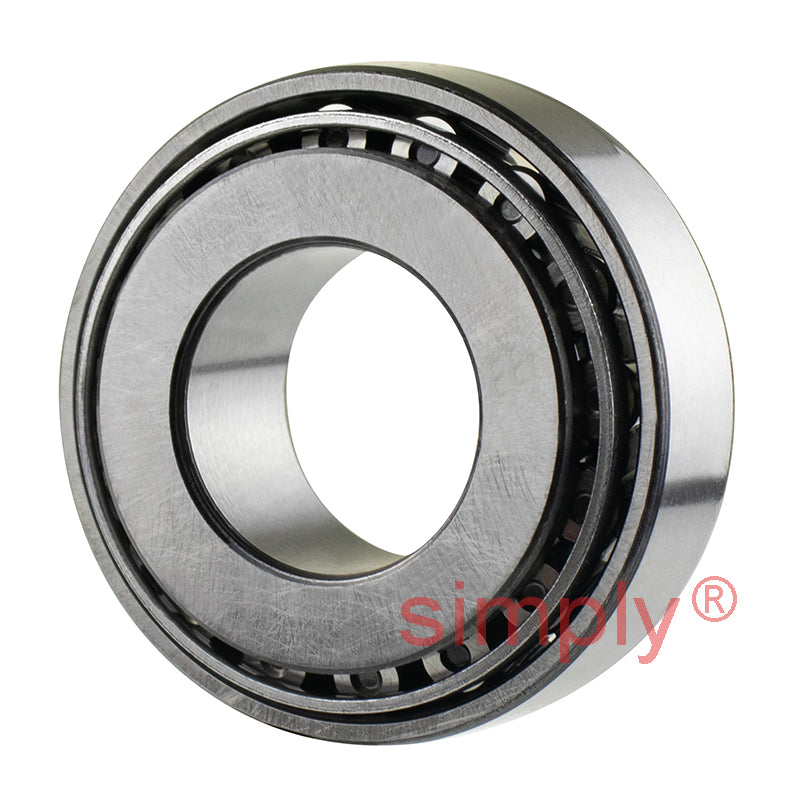

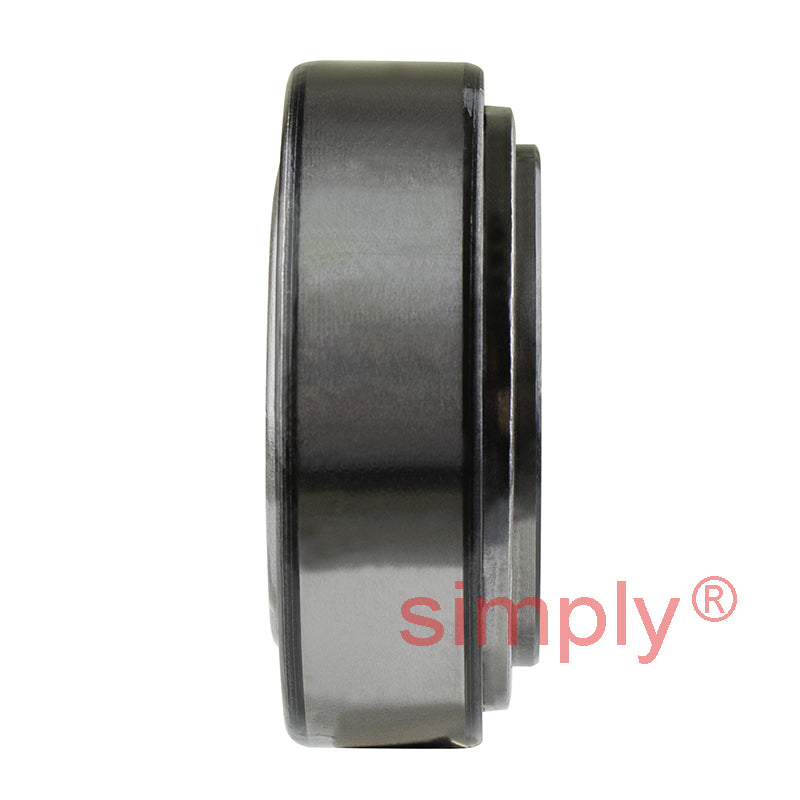

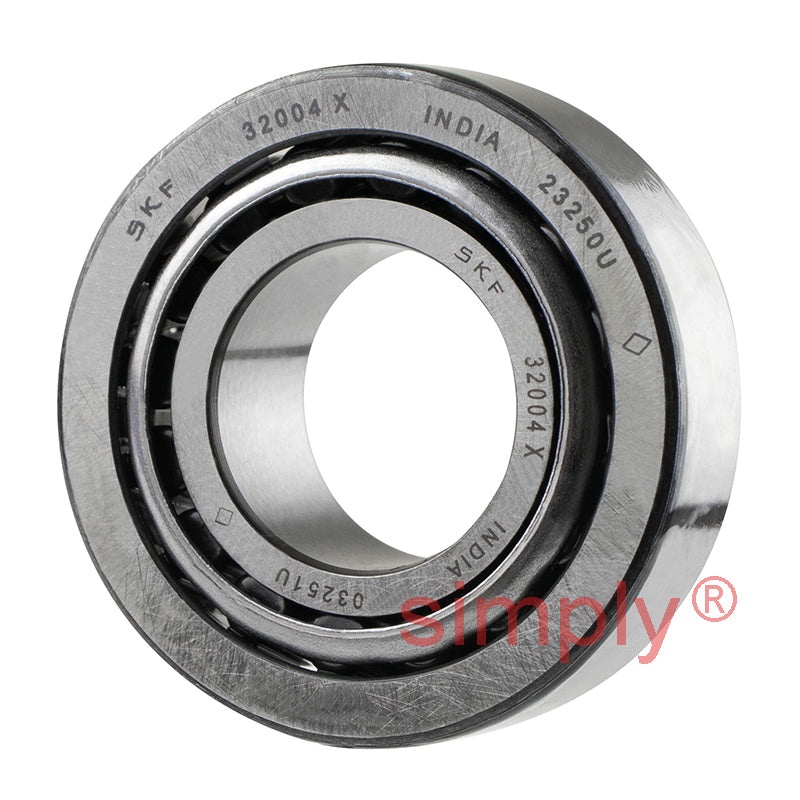

SKF 32004XQ Metric Single Row Taper Roller Bearing 20x42x15mm
SKF 32004XQ Metric Single Row Taper Roller Bearing 20x42x15mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
10+
CHF 12.29
19+
CHF 11.60
29+
CHF 11.46
39+
CHF 11.32
49+
CHF 11.19
74+
CHF 11.05
99+
CHF 10.36
199+
CHF 10.22
249+
CHF 10.08
499+
CHF 9.94
999+
CHF 9.67
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 15mm
- Seals / Shields:
- None
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| T | 15mm |
| Dynamic load | 24.2 kN |
| Static load | 27 kN |
| Fatigue load limit Pu | 2.7 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.097 kg |
| d1 | 31.1mm |
| B | 15mm |
| C | 12mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.6mm |
| a | 10mm |
| da max | 25mm |
| db min | 25mm |
| Da min | 36mm |
| Da max | 37mm |
| Db min | 39mm |
| Ca min | 2mm |
| Cb min | 3mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
| Calculation factor e | 0.37 |
| Calculation factor Y | 1.6 |
| Calculation factor Y0 | 0.9 |
