SKU: 32012X-MB
Major Brand 32012X Metric Taper Roller Bearing 60x95x23mm
Major Brand 32012X Metric Taper Roller Bearing 60x95x23mm
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
10+
CHF 31.37
19+
CHF 29.61
29+
CHF 29.26
39+
CHF 28.90
49+
CHF 28.55
74+
CHF 28.20
99+
CHF 26.44
199+
CHF 26.08
249+
CHF 25.73
499+
CHF 25.38
999+
CHF 24.67
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 23mm
- Seals / Shields:
- None
Technical
Technical

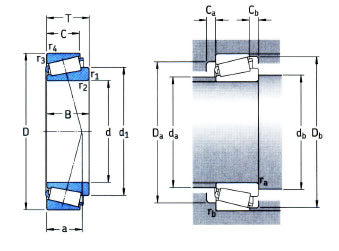

| d | 60mm |
|---|---|
| D | 95mm |
| T | 23mm |
| Dynamic load | 95 kN |
| Static load | 122 kN |
| Fatigue load limit Pu | 13.4 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 6700 rpm |
| Mass | 0.59 kg |
| d1 | 77.8mm |
| B | 23mm |
| C | 17.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| a | 21mm |
| da max | 67mm |
| db min | 67mm |
| Da min | 85mm |
| Da max | 88mm |
| Db min | 91mm |
| Ca min | 4mm |
| Cb min | 5mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| e | 0.43 |
| Y | 1.4 |
| Y0 | 0.8 |
