SKU: 32018X/QDF-SKF

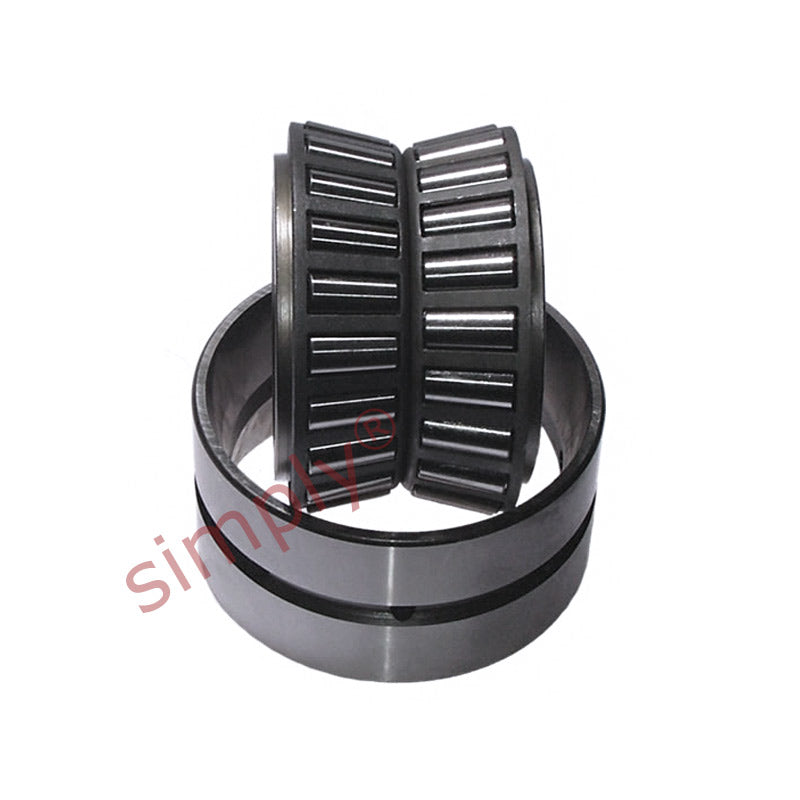

SKF 32018X/QDF Single Row Taper Roller Bearings Paired Face to Face 90x140x64mm

Name: SKF 32018X/QDF Single Row Taper Roller Bearings Paired Face to Face 90x140x64mm
Brand: SKF
SKU: 32018X/QDF-SKF
Price: 864.00 CHF
Availability: InStock

CHF 864.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 688.11

19+ CHF 649.45

29+ CHF 641.72

39+ CHF 633.99

49+ CHF 626.26

74+ CHF 618.53

99+ CHF 579.87

199+ CHF 572.14

249+ CHF 564.41

499+ CHF 556.67

999+ CHF 541.21

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 90mm
Outside Diameter:: 140mm
Width:: 64mm
Seals / Shields:: None

Technical

d	90mm
D	140mm
T	64mm
Dynamic load	292 kN
Static load	540 kN
Fatigue load limit Pu	62 kN
Reference speed	2600 rpm
Limiting speed	4300 rpm
Weight	3.65 kg
2B	64mm
r3r4	1.5mm
r5	0.6mm
da max	100mm
da min	125mm
Da max	132mm
Ca min	6mm
ra max	1.5mm
rc max	0.6mm
Calculation Factor e	0.43
Calculation Factor Y1	1.6
Calculation Factor Y2	2.3
Calculation Factor Y0	1.6
