SKU: 32022X/Q-SKF

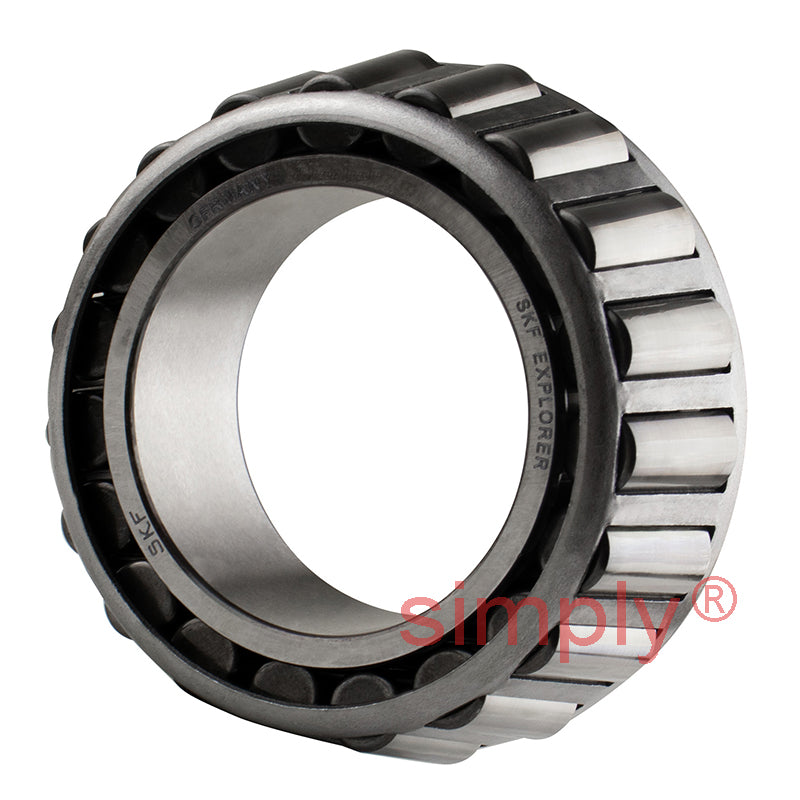

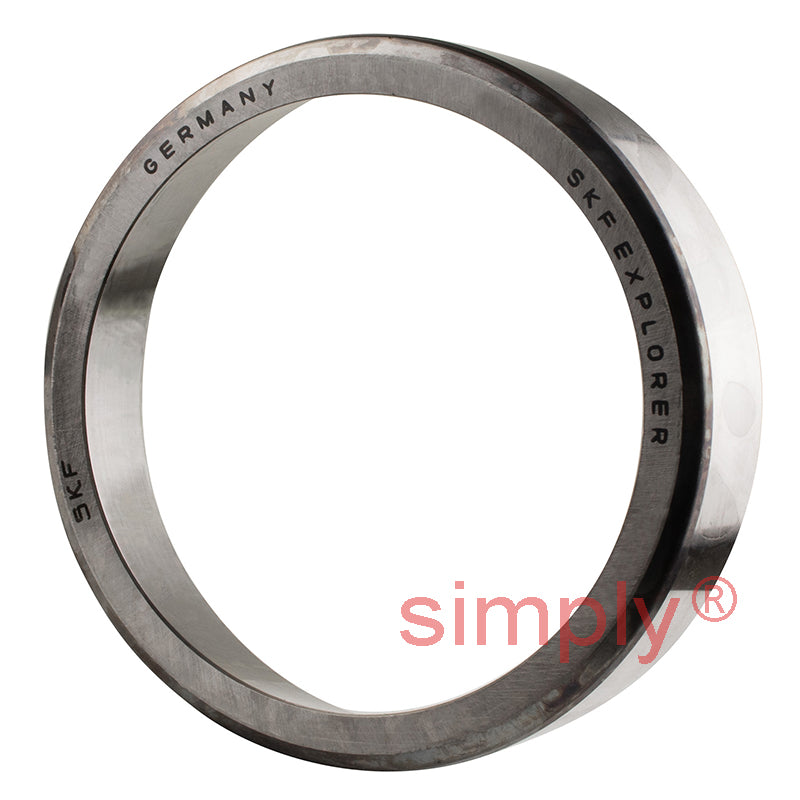

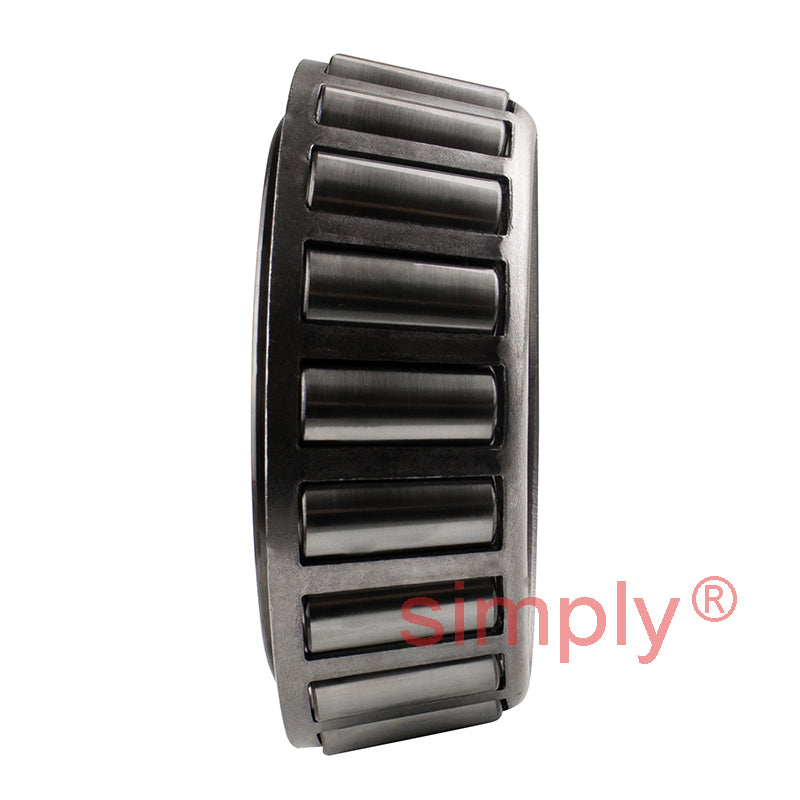

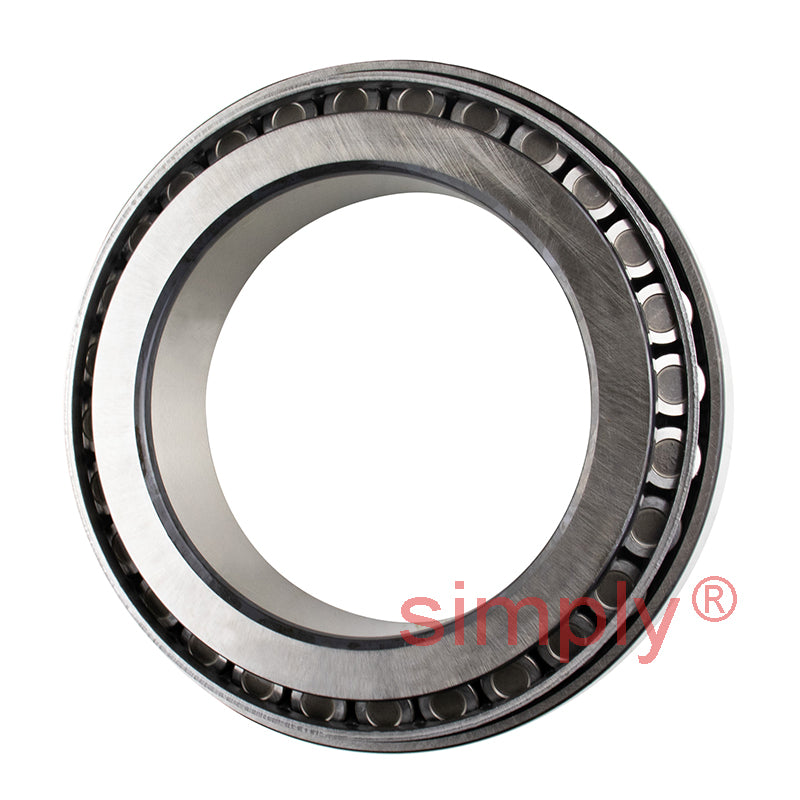

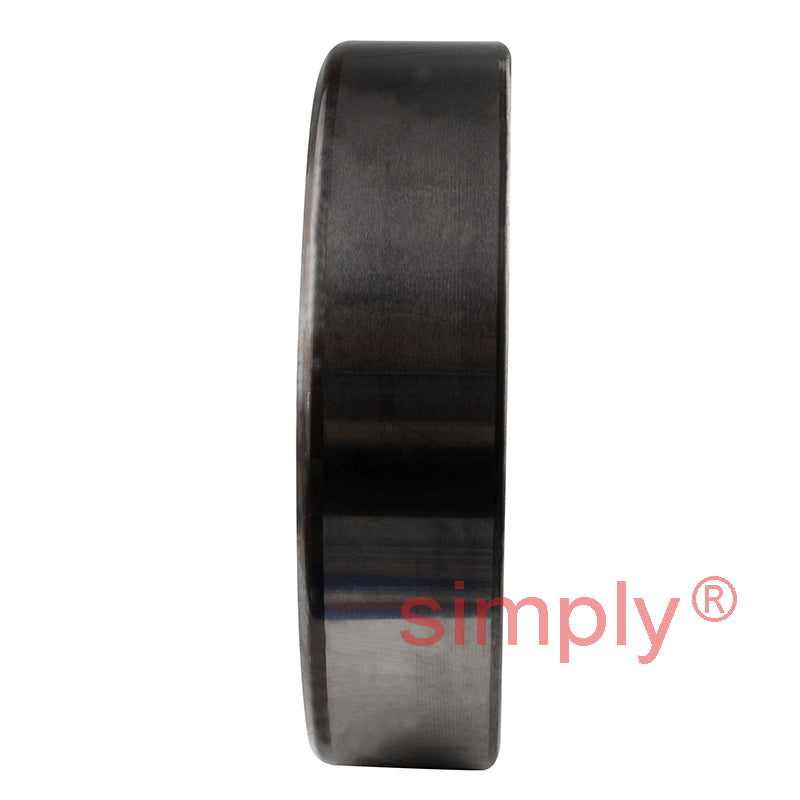

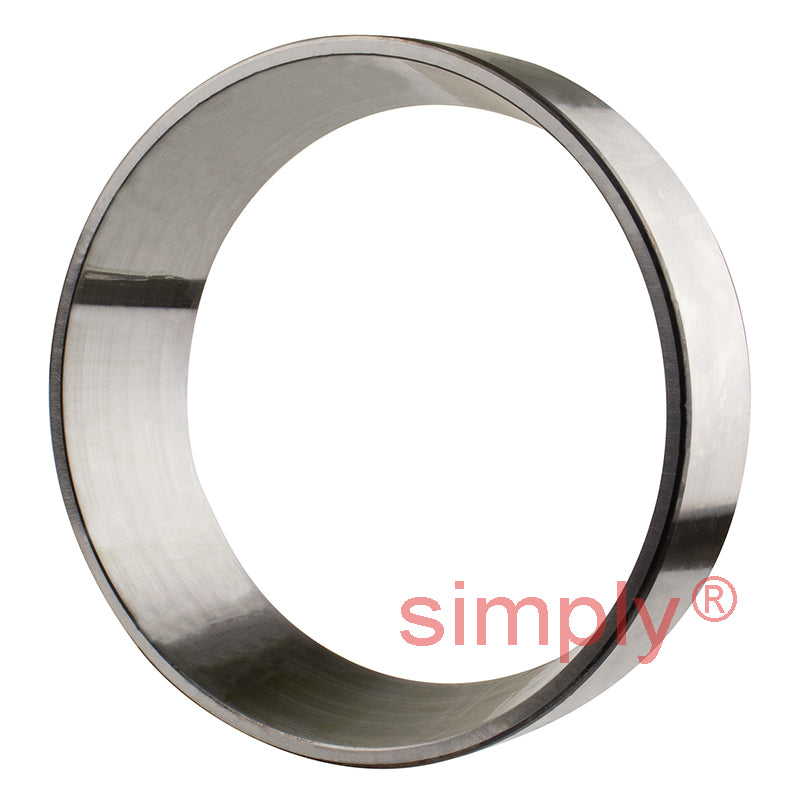

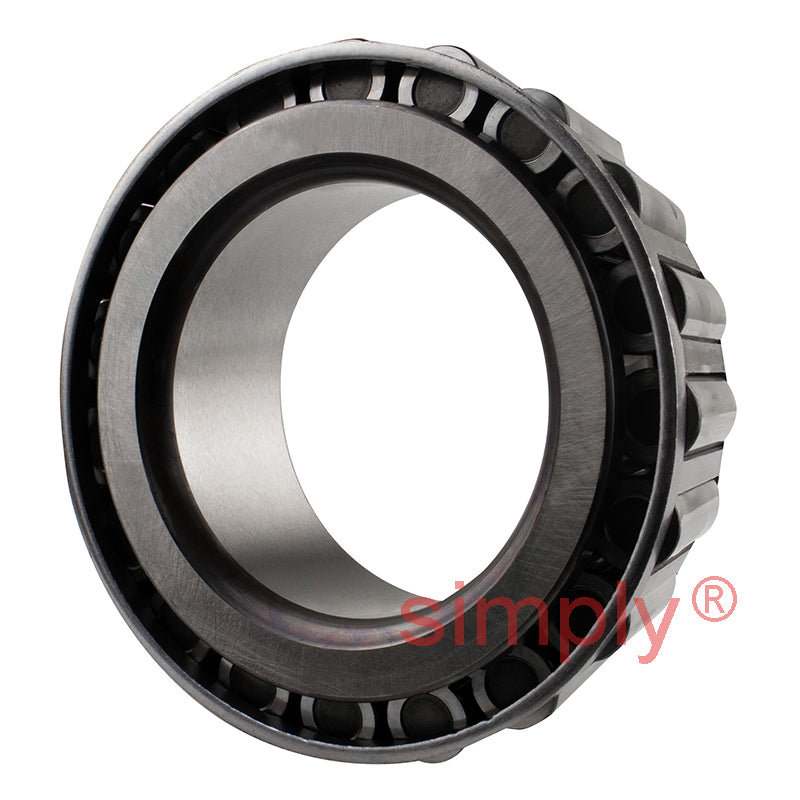

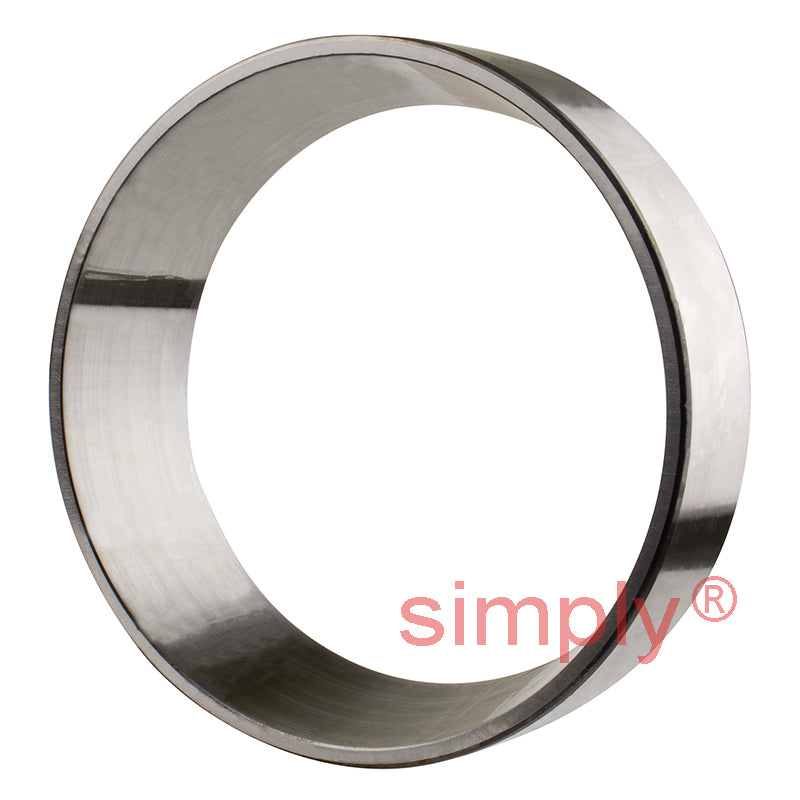

SKF 32022XQ Metric Single Row Taper Roller Bearing 110x170x38mm
SKF 32022XQ Metric Single Row Taper Roller Bearing 110x170x38mm
Regular price
CHF 123.00
ex VAT
Regular price
Sale price
CHF 123.00
ex VAT
In stock
Price Break
10+
CHF 97.55
19+
CHF 92.07
29+
CHF 90.98
39+
CHF 89.88
49+
CHF 88.78
74+
CHF 87.69
99+
CHF 82.21
199+
CHF 81.11
249+
CHF 80.02
499+
CHF 78.92
999+
CHF 76.73
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 38mm
- Seals / Shields:
- None
Technical
Technical
| d | 110mm |
|---|---|
| D | 170mm |
| T | 38mm |
| Dynamic load | 233 kN |
| Static load | 390 kN |
| Fatigue load limit Pu | 42.5 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 3.05 kg |
| d1 | 140mm |
| B | 38mm |
| C | 29mm |
| r1r2 min | 2.5mm |
| r3r4 min | 2mm |
| a | 36mm |
| da max | 123mm |
| db min | 121mm |
| Da min | 152mm |
| Da max | 160mm |
| Db min | 163mm |
| Ca min | 7mm |
| Cb min | 9mm |
| ra max | 2mm |
| rb max | 2mm |
| Calculation factor e | 0.43 |
| Calculation factor Y | 1.4 |
| Calculation factor Y0 | 0.8 |
