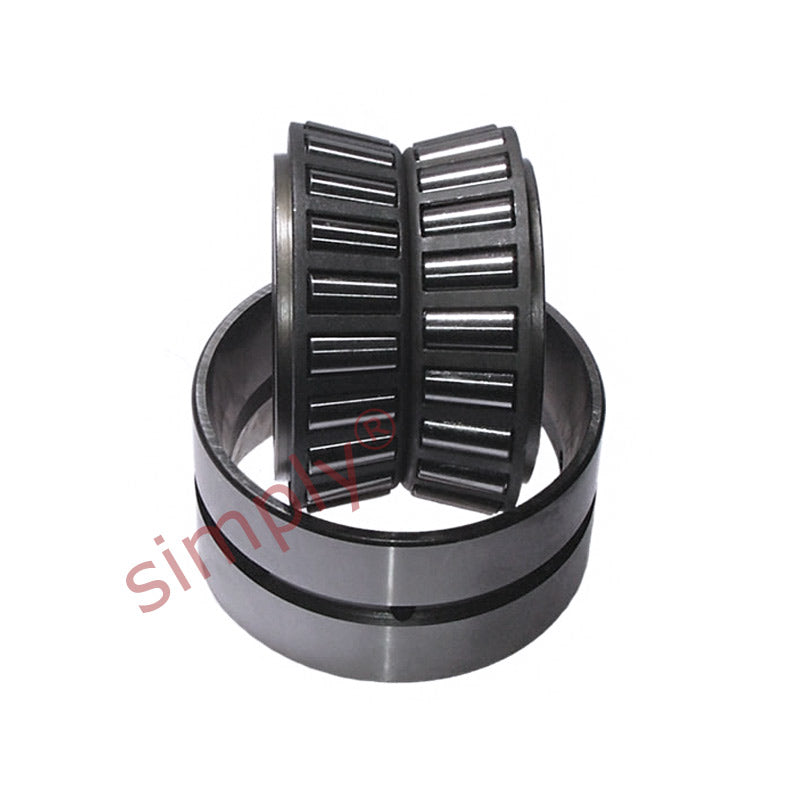

SKF 32024X/DF Single Row Taper Roller Bearings Paired Face to Face 120x180x76mm

Name: SKF 32024X/DF Single Row Taper Roller Bearings Paired Face to Face 120x180x76mm
Brand: SKF
SKU: 32024X/DF-SKF
Price: 1026.00 CHF
Availability: InStock

CHF 1,026.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 817.18

19+ CHF 771.27

29+ CHF 762.09

39+ CHF 752.91

49+ CHF 743.73

74+ CHF 734.55

99+ CHF 688.64

199+ CHF 679.46

249+ CHF 670.27

499+ CHF 661.09

999+ CHF 642.73

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 180mm
Width:: 76mm
Seals / Shields:: None

Technical

d	120mm
D	180mm
T	76mm
Dynamic load	418 kN
Static load	830 kN
Fatigue load limit Pu	88 kN
Reference speed	2000 rpm
Limiting speed	3400 rpm
Weight	6.75 kg
2B	76mm
r3r4	2mm
r5	0.6mm
da max	132mm
da min	161mm
Da max	170mm
Ca min	7mm
ra max	2mm
rc max	0.6mm
Calculation Factor e	0.46
Calculation Factor Y1	1.5
Calculation Factor Y2	2.2
Calculation Factor Y0	1.4
