SKU: 32024X-SKF

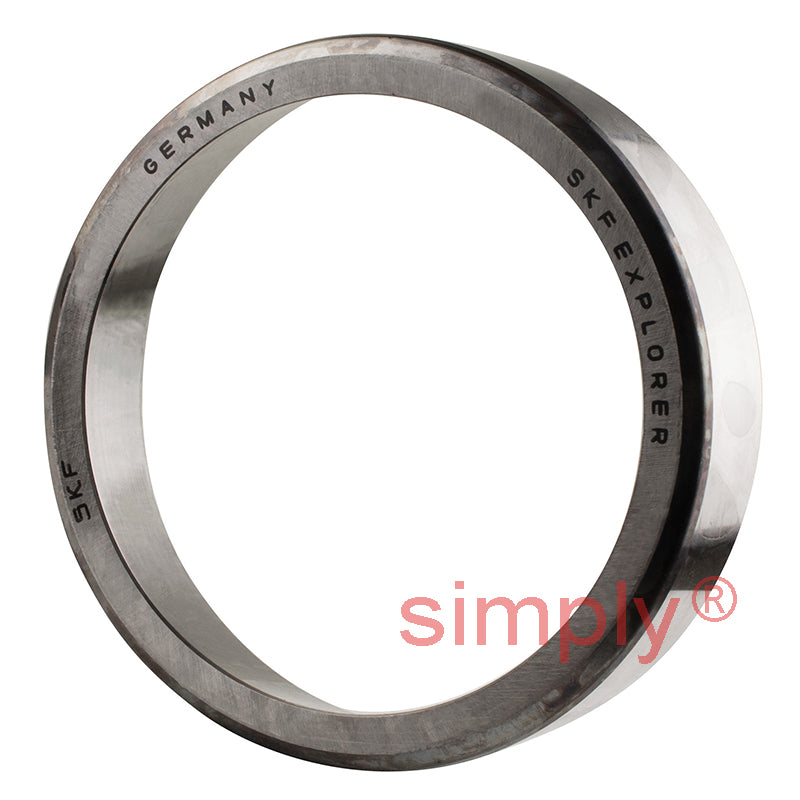

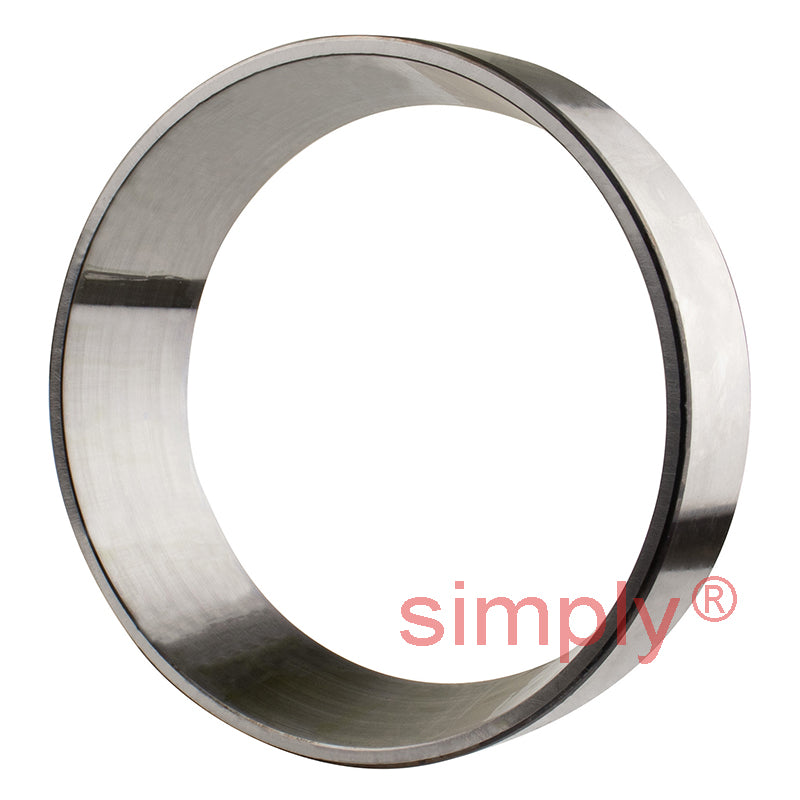

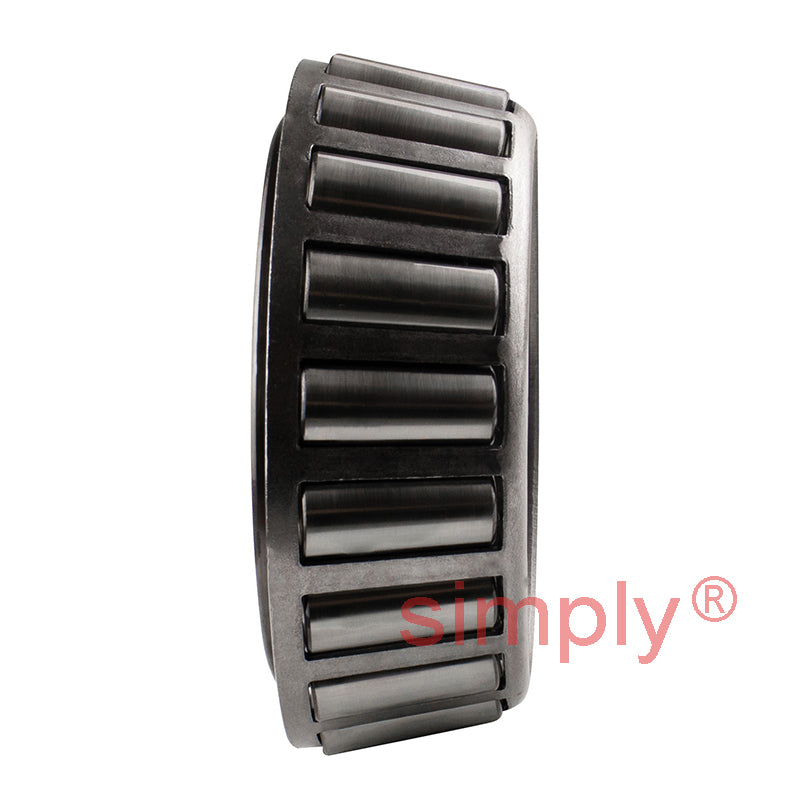

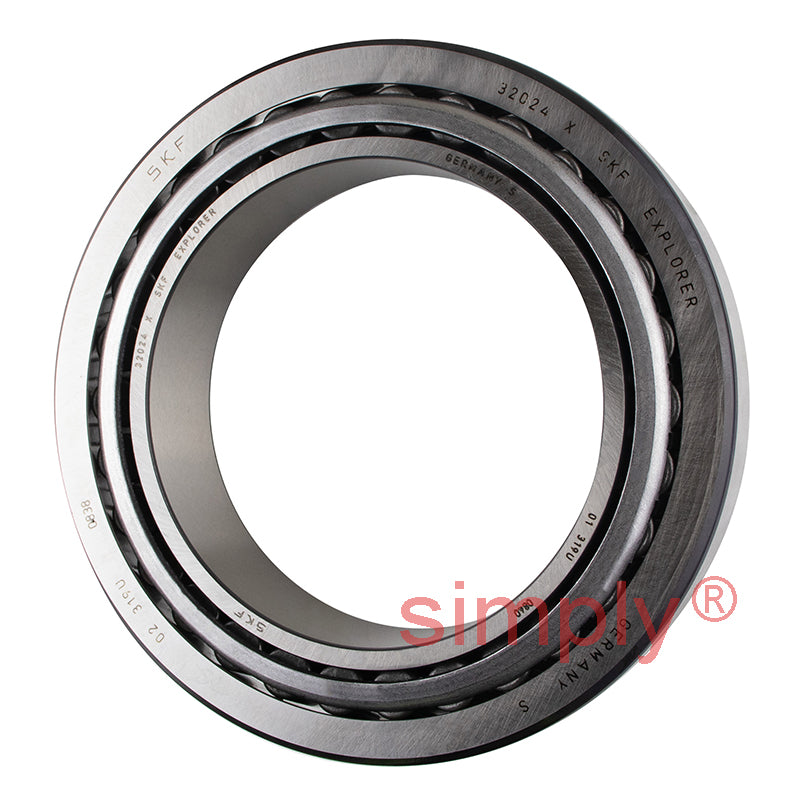

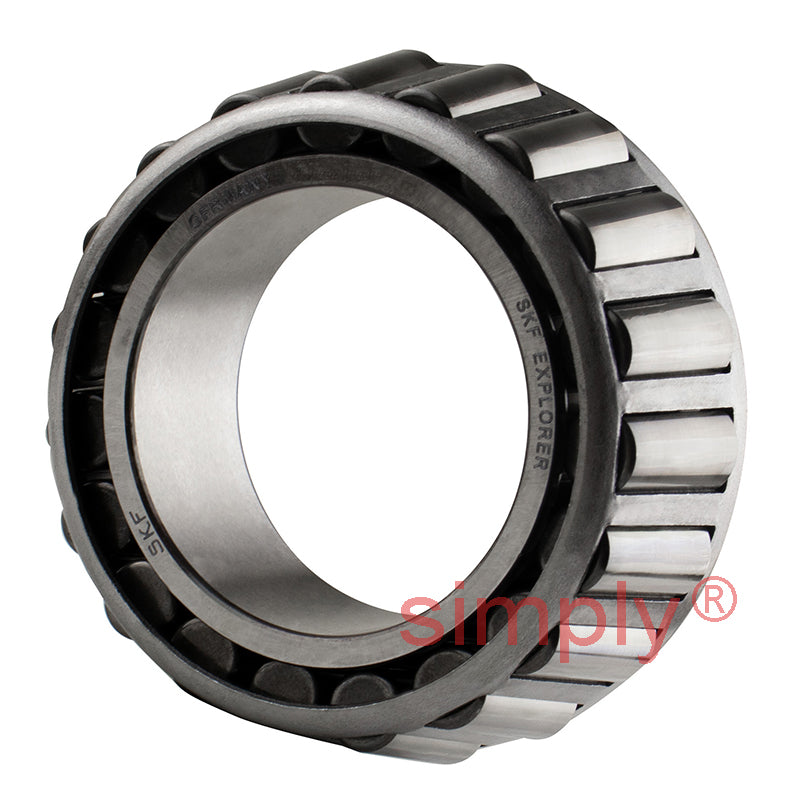

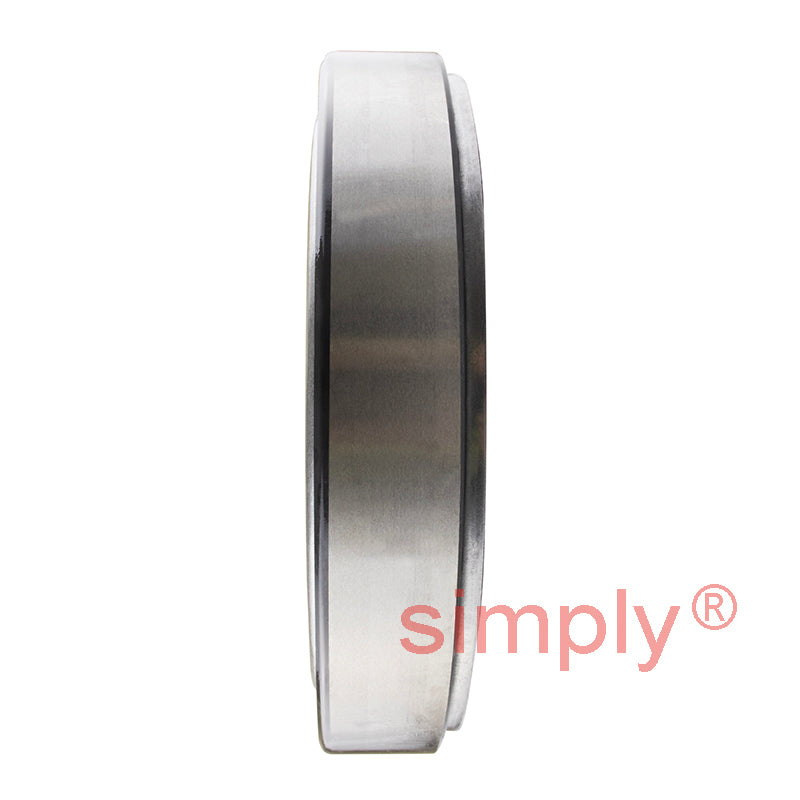

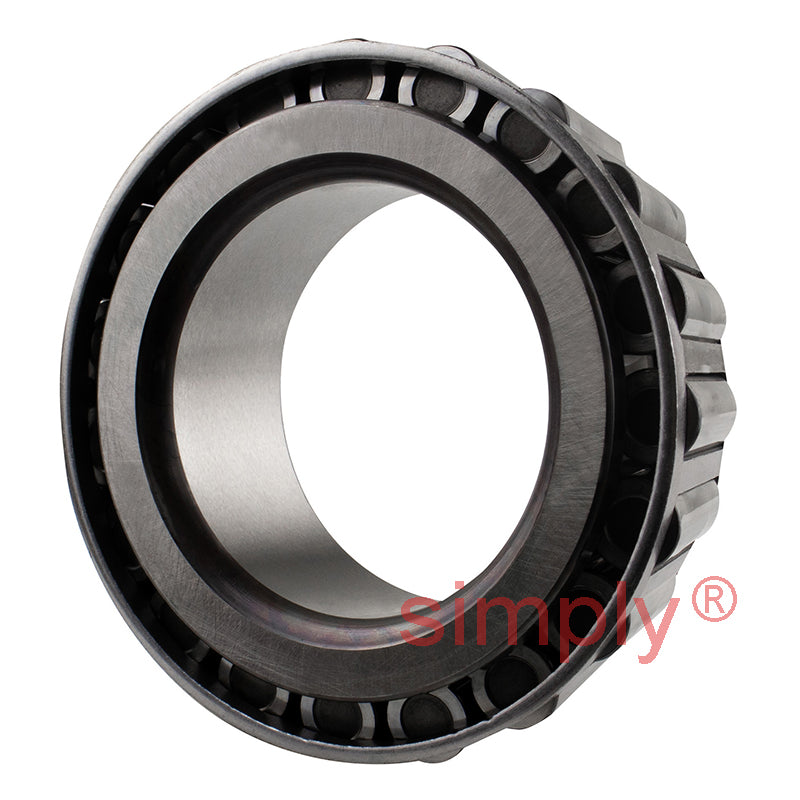

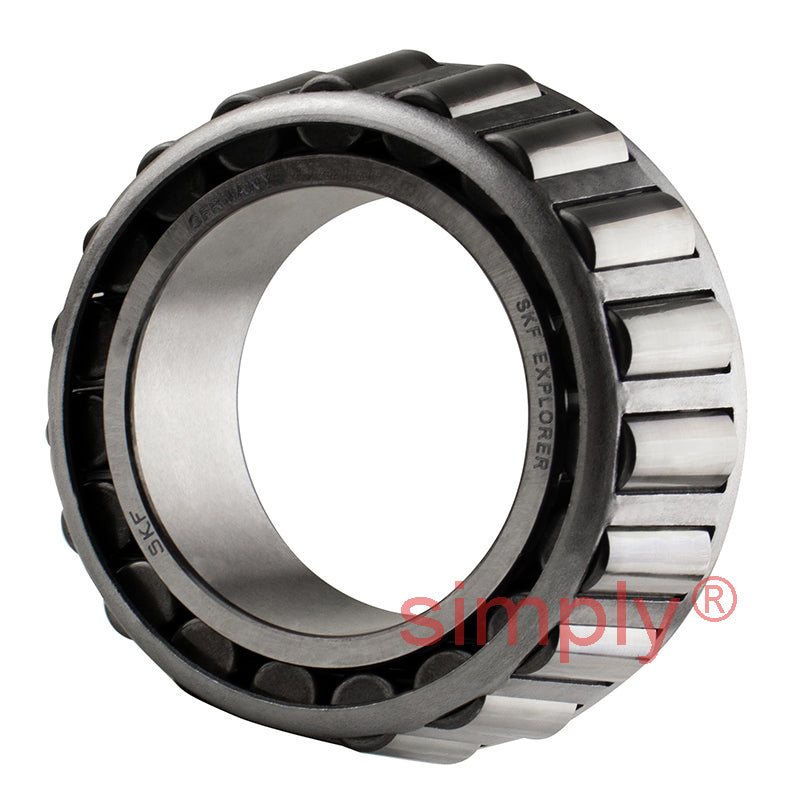

SKF 32024X Metric Single Row Taper Roller Bearing 120x180x38mm
SKF 32024X Metric Single Row Taper Roller Bearing 120x180x38mm
Regular price
CHF 209.00
ex VAT
Regular price
Sale price
CHF 209.00
ex VAT
In stock
Price Break
10+
CHF 166.20
19+
CHF 156.86
29+
CHF 154.99
39+
CHF 153.13
49+
CHF 151.26
74+
CHF 149.39
99+
CHF 140.05
199+
CHF 138.19
249+
CHF 136.32
499+
CHF 134.45
999+
CHF 130.72
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 38mm
- Seals / Shields:
- None
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| T | 38mm |
| Dynamic load | 242 kN |
| Static load | 415 kN |
| Fatigue load limit Pu | 44 kN |
| Reference speed | 2400 rpm |
| Limiting speed | 3400 rpm |
| Weight | 3.25 kg |
| d1 | 150mm |
| B | 38mm |
| C | 29mm |
| r1r2 min | 2.5mm |
| r3r4 min | 2mm |
| a | 39mm |
| da max | 132mm |
| db min | 131mm |
| Da min | 161mm |
| Da max | 170mm |
| Db min | 173mm |
| Ca min | 7mm |
| Cb min | 9mm |
| ra max | 2mm |
| rb max | 2mm |
| Calculation factor e | 0.46 |
| Calculation factor Y | 1.3 |
| Calculation factor Y0 | 0.7 |
