SKU: 3203ATN9/C3-SKF

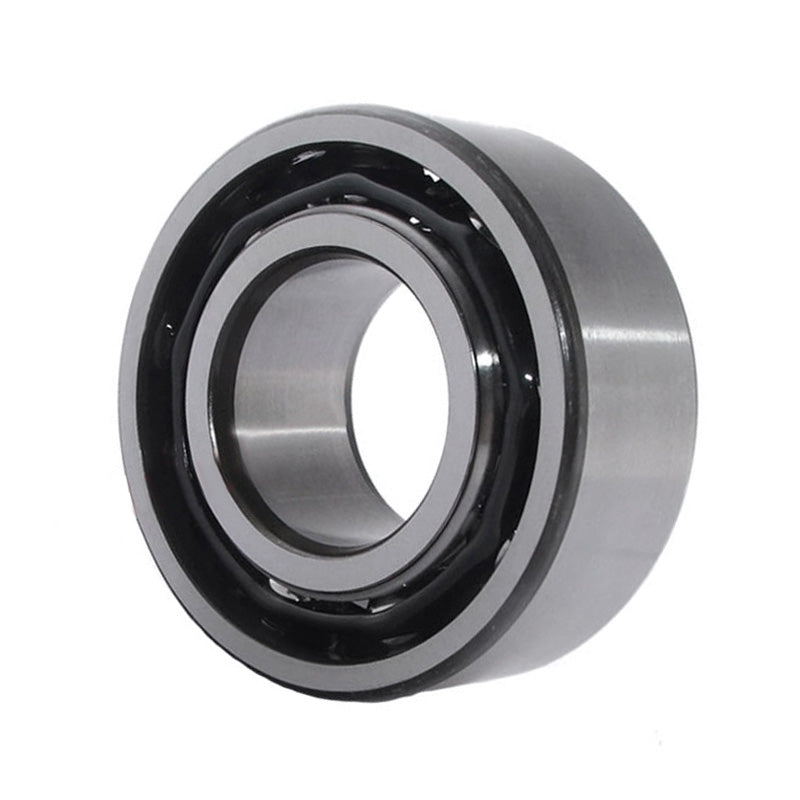

SKF 3203ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 17x40x17.5mm
SKF 3203ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 17x40x17.5mm
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
Equivalent to: 5203
In stock
Price Break
4+
CHF 31.44
8+
CHF 29.68
12+
CHF 29.32
16+
CHF 28.97
25+
CHF 28.62
50+
CHF 28.26
99+
CHF 26.50
199+
CHF 26.14
249+
CHF 25.79
499+
CHF 25.44
999+
CHF 24.73
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5203
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 17.5mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 17.5mm |
| Dynamic load Cr | 14.3 kN |
| Static load Cor | 8.8 kN |
| Fatigue load limit Pu | 0.365 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.096 kg |
| d1 | 25.1mm |
| D1 | 33.6mm |
| r1r2 min | 0.6mm |
| a | 23mm |
| da min | 21.4mm |
| Da max | 35.6mm |
| ra max | 0.6mm |
