SKU: 3204ATN9/C3-SKF

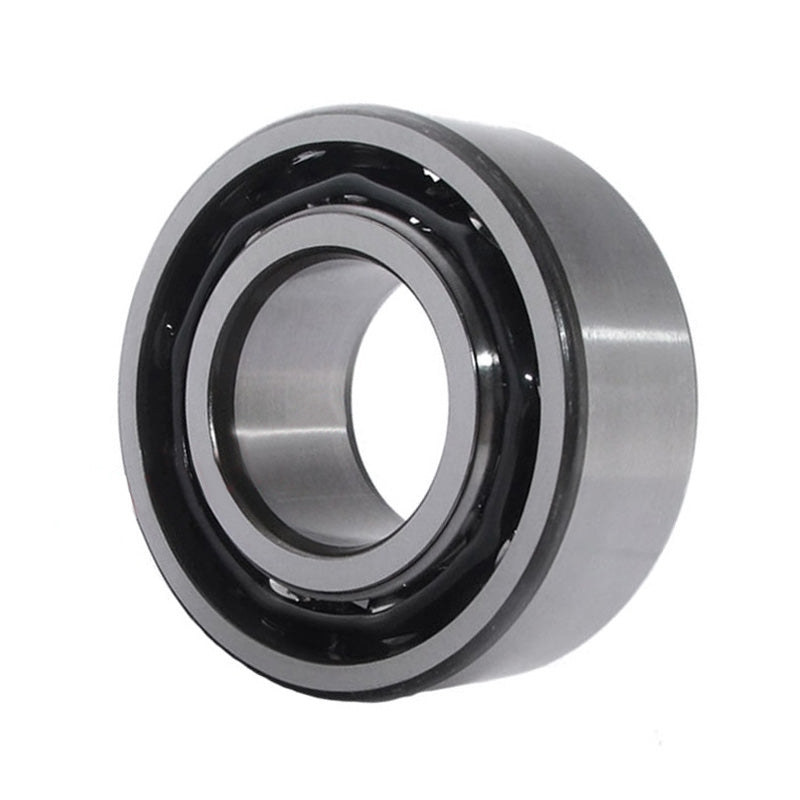

SKF 3204ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 20x47x20.6mm
SKF 3204ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 20x47x20.6mm
Regular price
CHF 42.00
ex VAT
Regular price
Sale price
CHF 42.00
ex VAT
Equivalent to: 5204
In stock
Price Break
4+
CHF 32.87
8+
CHF 31.02
12+
CHF 30.65
16+
CHF 30.29
25+
CHF 29.92
50+
CHF 29.55
99+
CHF 27.70
199+
CHF 27.33
249+
CHF 26.96
499+
CHF 26.59
999+
CHF 25.85
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5204
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 20.6mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 20.6mm |
| Dynamic load Cr | 20 kN |
| Static load Cor | 12 kN |
| Fatigue load limit Pu | 0.51 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.16 kg |
| d1 | 27.7mm |
| D1 | 40.9mm |
| r1r2 min | 1mm |
| a | 28mm |
| da min | 25.6mm |
| Da max | 41.4mm |
| ra max | 1mm |
