SKU: 3208ATN9-SKF

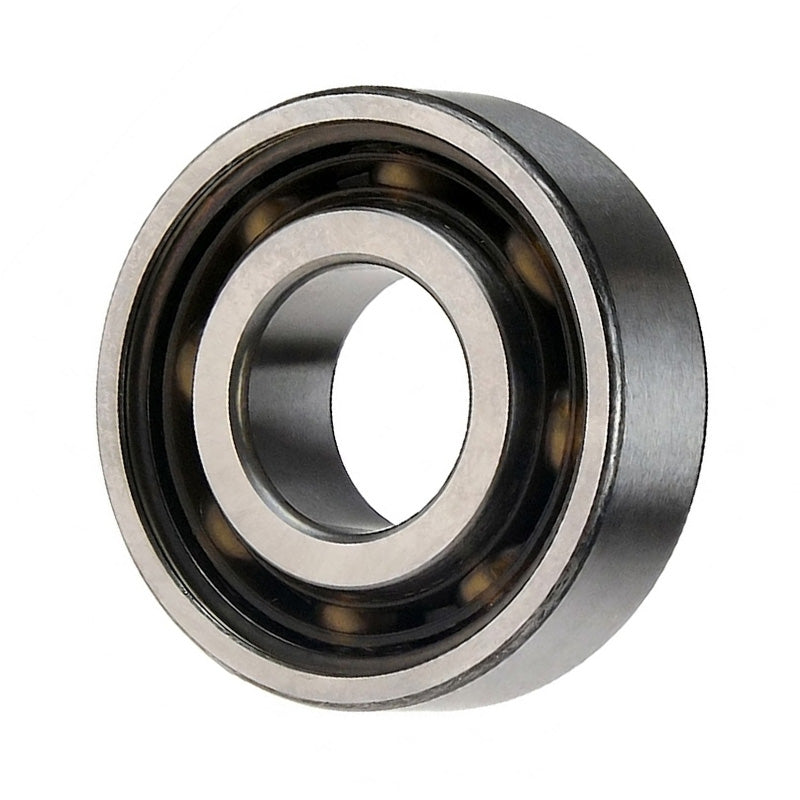

SKF 3208ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 40x80x30.2mm
SKF 3208ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 40x80x30.2mm
Regular price
CHF 78.00
ex VAT
Regular price
Sale price
CHF 78.00
ex VAT
Equivalent to: 5208
In stock
Price Break
4+
CHF 61.80
8+
CHF 58.33
12+
CHF 57.63
16+
CHF 56.94
25+
CHF 56.24
50+
CHF 55.55
99+
CHF 52.08
199+
CHF 51.38
249+
CHF 50.69
499+
CHF 49.99
999+
CHF 48.61
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5208
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 30.2mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 30.2mm |
| Dynamic load Cr | 47.5 kN |
| Static load Cor | 34 kN |
| Fatigue load limit Pu | 1.43 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.58 kg |
| d1 | 47.8mm |
| D1 | 72.1mm |
| r1r2 min | 1.1mm |
| a | 46mm |
| da min | 47mm |
| Da max | 73mm |
| ra max | 1mm |
