SKU: 3209ATN9/C3-SKF

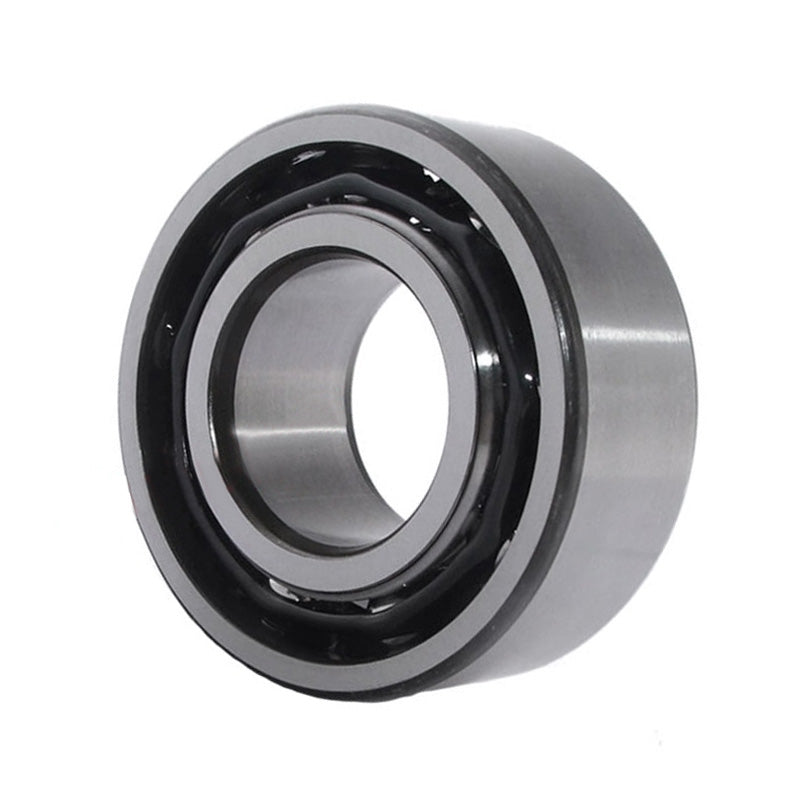

SKF 3209ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 45x85x30.2mm
SKF 3209ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 45x85x30.2mm
Regular price
CHF 89.00
ex VAT
Regular price
Sale price
CHF 89.00
ex VAT
Equivalent to: 5209
In stock
Price Break
4+
CHF 70.44
8+
CHF 66.49
12+
CHF 65.69
16+
CHF 64.90
25+
CHF 64.11
50+
CHF 63.32
99+
CHF 59.36
199+
CHF 58.57
249+
CHF 57.78
499+
CHF 56.99
999+
CHF 55.41
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5209
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 30.2mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 30.2mm |
| Dynamic load Cr | 51 kN |
| Static load Cor | 39 kN |
| Fatigue load limit Pu | 1.63 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.63 kg |
| d1 | 52.8mm |
| D1 | 77.1mm |
| r1r2 min | 1.1mm |
| a | 49mm |
| da min | 52mm |
| Da max | 78mm |
| ra max | 1mm |
