SKU: 3211ATN9-SKF

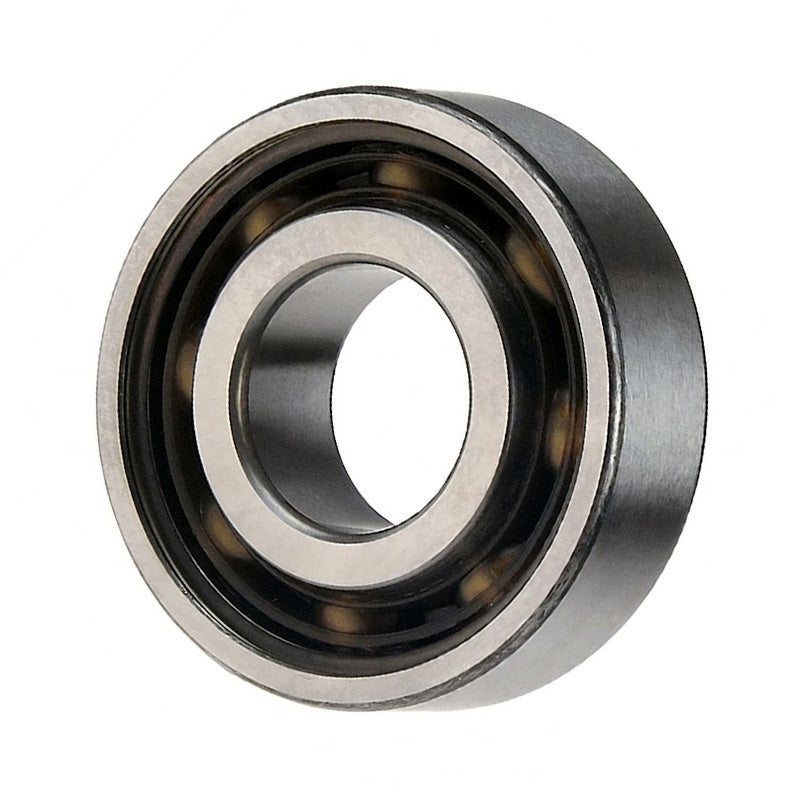

SKF 3211ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 55x100x33.3mm
SKF 3211ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 55x100x33.3mm
Regular price
CHF 107.00
ex VAT
Regular price
Sale price
CHF 107.00
ex VAT
Equivalent to: 5211
In stock
Price Break
4+
CHF 84.87
8+
CHF 80.10
12+
CHF 79.15
16+
CHF 78.19
25+
CHF 77.24
50+
CHF 76.28
99+
CHF 71.52
199+
CHF 70.56
249+
CHF 69.61
499+
CHF 68.66
999+
CHF 66.75
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5211
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 33.3mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 33.3mm |
| Dynamic load Cr | 60 kN |
| Static load Cor | 47.5 kN |
| Fatigue load limit Pu | 2 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6300 rpm |
| Weight | 1.05 kg |
| d1 | 63.2mm |
| D1 | 92.3mm |
| r1r2 min | 1.5mm |
| a | 57mm |
| da min | 63mm |
| Da max | 91mm |
| ra max | 1.5mm |
