SKU: 3212A-2RS1/MT33-SKF

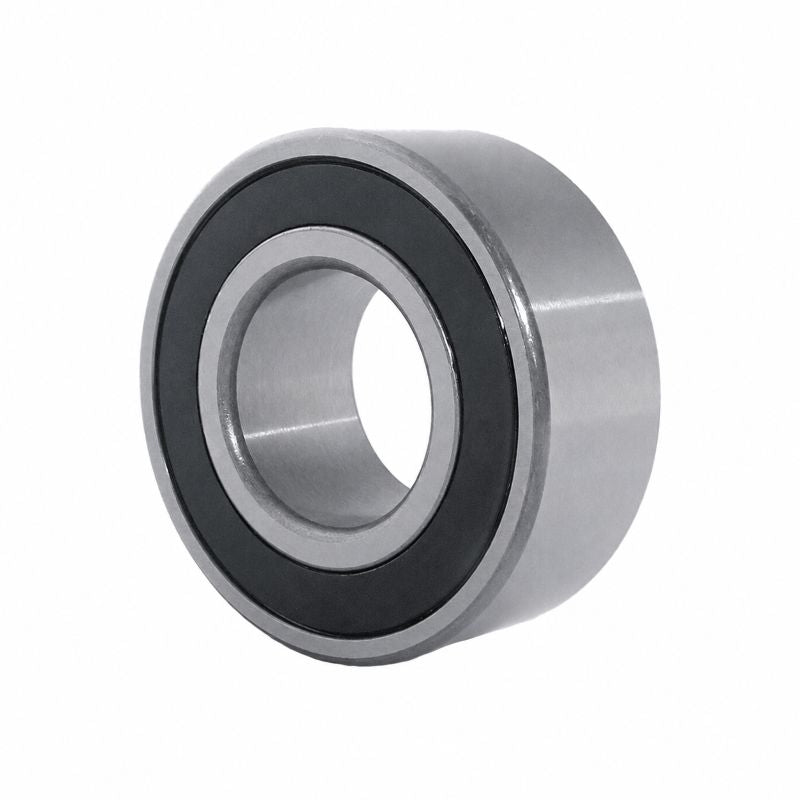

SKF 3212A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 60x110x36.5mm
SKF 3212A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 60x110x36.5mm
Regular price
CHF 194.99
ex VAT
Regular price
Sale price
CHF 194.99
ex VAT
Equivalent to: 5212
In stock
Price Break
10+
CHF 173.54
19+
CHF 163.79
29+
CHF 161.84
39+
CHF 159.89
49+
CHF 157.94
74+
CHF 155.99
99+
CHF 146.24
199+
CHF 144.29
249+
CHF 142.34
499+
CHF 140.39
999+
CHF 136.49
Couldn't load pickup availability
Description
Description
|
SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5212
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 36.5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 36.5mm |
| Dynamic load Cr | 73.5 kN |
| Static load Cor | 58.5 kN |
| Fatigue load limit Pu | 2.5 kN |
| Max speed | 4000 rpm |
| Weight | 1.2 kg |
| d1 | 68.8mm |
| D1 | 101mm |
| r1r2 min | 1.5mm |
| a | 63mm |
| da min | 68.5mm |
| da max | 68.5mm |
| Da max | 101mm |
| ra max | 1.5mm |
