SKU: 3212ATN9-SKF

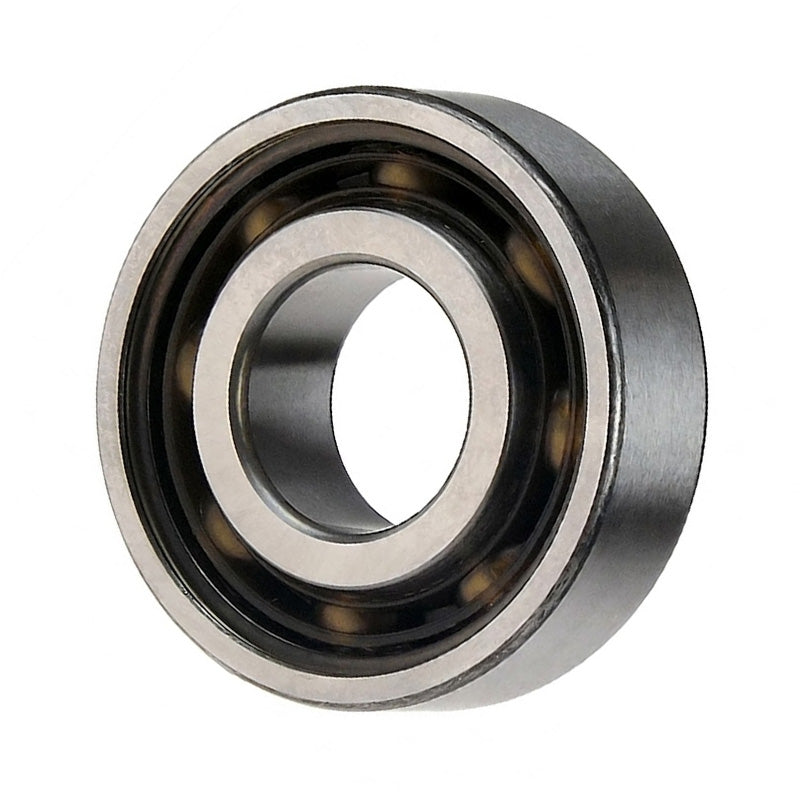

SKF 3212ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 60x110x36.5mm
SKF 3212ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 60x110x36.5mm
Regular price
CHF 135.00
ex VAT
Regular price
Sale price
CHF 135.00
ex VAT
Equivalent to: 5212
In stock
Price Break
10+
CHF 120.15
19+
CHF 113.40
29+
CHF 112.05
39+
CHF 110.70
49+
CHF 109.35
74+
CHF 108.00
99+
CHF 101.25
199+
CHF 99.90
249+
CHF 98.55
499+
CHF 97.20
999+
CHF 94.50
Couldn't load pickup availability
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5212
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 36.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 36.5mm |
| Dynamic load Cr | 73.5 kN |
| Static load Cor | 58.5 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.4 kg |
| d1 | 68.8mm |
| D1 | 101mm |
| r1r2 min | 1.5mm |
| a | 63mm |
| da min | 69mm |
| Da max | 101mm |
| ra max | 1.5mm |
