SKU: 3220A/C3-SKF

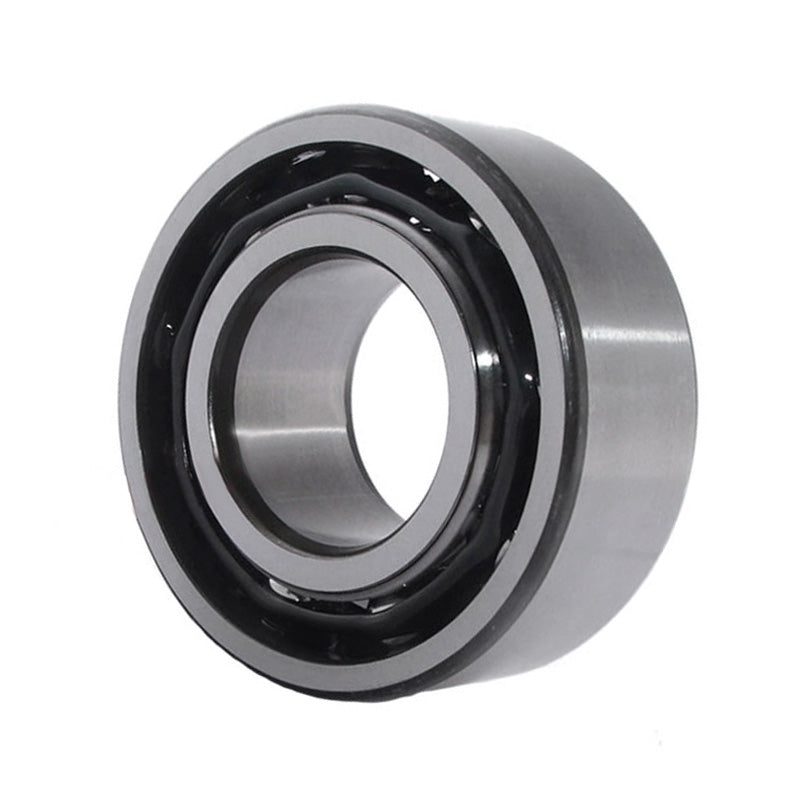

SKF 3220AC3 Double Row Angular Contact Ball Bearing Steel Cage 100x180x60.3mm
SKF 3220AC3 Double Row Angular Contact Ball Bearing Steel Cage 100x180x60.3mm
Regular price
CHF 586.12
ex VAT
Regular price
Sale price
CHF 586.12
ex VAT
Equivalent to: 5220
In stock
Price Break
10+
CHF 521.65
19+
CHF 492.34
29+
CHF 486.48
39+
CHF 480.62
49+
CHF 474.76
74+
CHF 468.90
99+
CHF 439.59
199+
CHF 433.73
249+
CHF 427.87
499+
CHF 422.01
999+
CHF 410.28
Couldn't load pickup availability
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5220
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 60.3mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 60.3mm |
| Dynamic load Cr | 178 kN |
| Static load Cor | 166 kN |
| Fatigue load limit Pu | 6 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 3200 rpm |
| Weight | 6.1 kg |
| d1 | 125mm |
| D1 | 155mm |
| r1r2 min | 2.1mm |
| a | 107mm |
| da min | 112mm |
| Da max | 168mm |
| ra max | 2mm |
