SKU: 32215J2/QDF-SKF

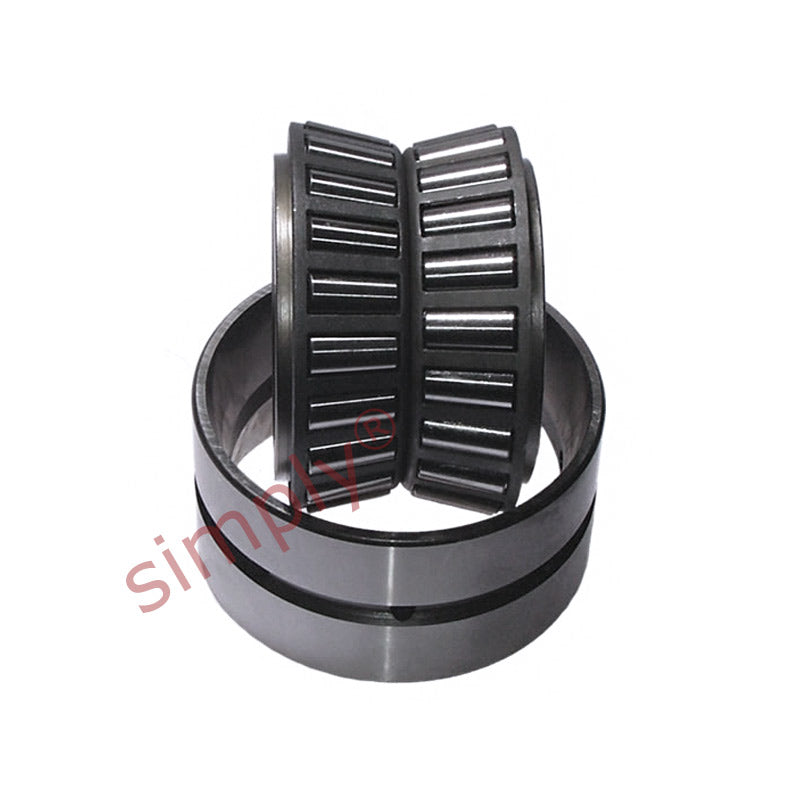

SKF 32215J2/QDF Single Row Taper Roller Bearings Paired Face to Face 75x130x66.5mm
SKF 32215J2/QDF Single Row Taper Roller Bearings Paired Face to Face 75x130x66.5mm
Regular price
CHF 508.63
ex VAT
Regular price
Sale price
CHF 508.63
ex VAT
In stock
Price Break
10+
CHF 452.68
19+
CHF 427.25
29+
CHF 422.16
39+
CHF 417.08
49+
CHF 411.99
74+
CHF 406.90
99+
CHF 381.47
199+
CHF 376.39
249+
CHF 371.30
499+
CHF 366.21
999+
CHF 356.04
Couldn't load pickup availability
Description
Description
|
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery. Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 66.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| T | 66.5mm |
| Dynamic load | 275 kN |
| Static load | 425 kN |
| Fatigue load limit Pu | 49 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 3.4 kg |
| 2B | 62mm |
| r3r4 | 1.5mm |
| r5 | 0.6mm |
| da max | 85mm |
| da min | 114mm |
| Da max | 122mm |
| Ca min | 4mm |
| ra max | 1.5mm |
| rc max | 0.6mm |
| Calculation Factor e | 0.43 |
| Calculation Factor Y1 | 1.6 |
| Calculation Factor Y2 | 2.3 |
| Calculation Factor Y0 | 1.6 |
