SKU: 32224T146J2/DB31C210-SKF

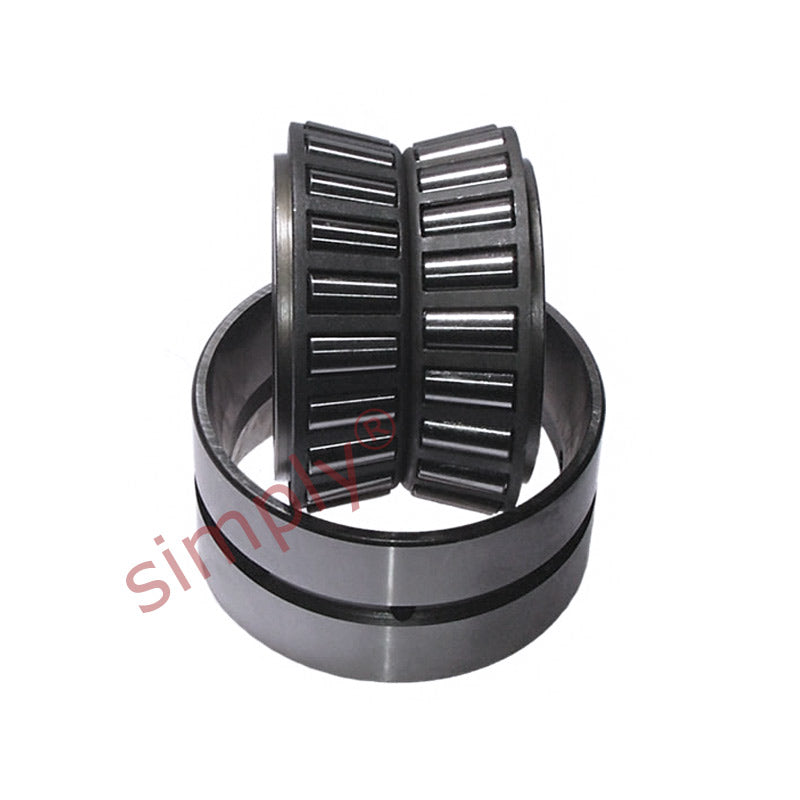

SKF 32224T146J2/DB31C210 Single Row Taper Roller Bearings Paired Back to Back 120x215x146mm
SKF 32224T146J2/DB31C210 Single Row Taper Roller Bearings Paired Back to Back 120x215x146mm
Regular price
CHF 3,680.00
ex VAT
Regular price
Sale price
CHF 3,680.00
ex VAT
In stock
Price Break
10+
CHF 2,933.84
19+
CHF 2,769.02
29+
CHF 2,736.06
39+
CHF 2,703.09
49+
CHF 2,670.13
74+
CHF 2,637.16
99+
CHF 2,472.34
199+
CHF 2,439.38
249+
CHF 2,406.41
499+
CHF 2,373.45
999+
CHF 2,307.52
Share this product
Description
Description
|
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery. Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 146mm
- Seals / Shields:
- None
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| T | 146mm |
| Dynamic load | 792 kN |
| Static load | 1400 kN |
| Fatigue load limit | 146 kN |
| Reference speed | 1800 rpm |
| Limiting speed | 3000 rpm |
| Weight | 21 kg |
| d1 | 163mm |
| C | 123mm |
| r1r2 min | 3mm |
| r5 min | 1mm |
| a | 125mm |
| db min | 132mm |
| Db min | 204mm |
| Cb min | 11.5mm |
| ra max | 2.5mm |
| rc max | 1mm |
| Calculation Factor e | 0.43 |
| Calculation Factor Y1 | 1.6 |
| Calculation Factor Y2 | 2.3 |
| Calculation Factor Y0 | 1.6 |
