SKU: 32230U-NTN

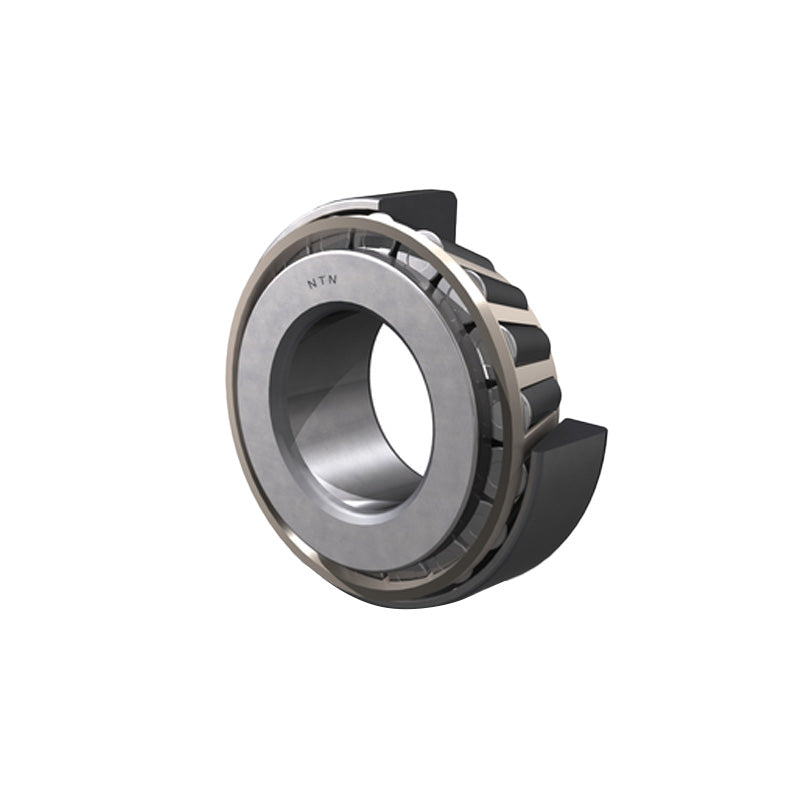

NTN 32230U Tapered Roller Bearing Cup and Cone Set 150x270x77mm
NTN 32230U Tapered Roller Bearing Cup and Cone Set 150x270x77mm
Regular price
CHF 1,098.00
ex VAT
Regular price
Sale price
CHF 1,098.00
ex VAT
In stock
Price Break
3+
CHF 874.87
5+
CHF 825.72
10+
CHF 815.89
25+
CHF 806.06
49+
CHF 796.23
74+
CHF 786.40
99+
CHF 737.25
199+
CHF 727.42
249+
CHF 717.59
499+
CHF 707.76
999+
CHF 688.10
Share this product
Description
Description
NTN Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads.
Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 270mm
- Width:
- 77mm
- Style:
- Taper Roller Bearing
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 150mm |
| D | 270mm |
| T | 77mm |
| B | 73mm |
| C | 60mm |
| r<sub>s</sub> min | 4mm |
| r<sub>ls</sub> min | 3mm |
| --- | Speeds and loads |
| Dynamic load C<sub>r</sub> | 775kN |
| Static load C<sub>or</sub> | 1070kN |
| Fatigue Load limit C<sub>u</sub> | 105kN |
| Allowable Speed in grease | 1300rpm |
| Allowable Speed in oil | 1700rpm |
| --- | Abutment dimensions |
| ISO Dimension series | 4GD |
| d<sub>a</sub> min | 168mm |
| d<sub>b</sub> max | 169mm |
| D<sub>a</sub> max | 256mm |
| D<sub>a</sub> min | 222mm |
| D<sub>b</sub> min | 256mm |
| S<sub>a</sub> min | 8mm |
| S<sub>b</sub> min | 17mm |
| r<sub>as</sub> max | 3mm |
| r<sub>1as</sub> max | 2.5mm |
| Load center a | 64.5mm |
| Constant e | 0.44mm |
| Y<sub>2</sub> | 1.38mm |
| Y<sub>0</sub> | 0.76mm |
| Weight | 18kg |
