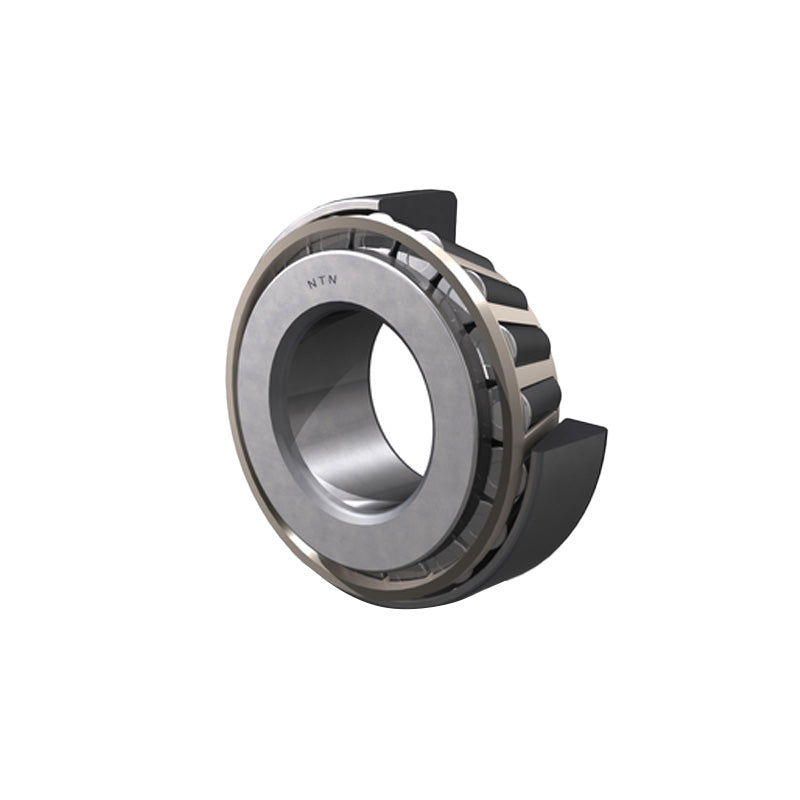

NTN 32309CU Tapered Roller Bearing Cup and Cone Set 45x100x38.25mm
NTN 32309CU Tapered Roller Bearing Cup and Cone Set 45x100x38.25mm
Regular price
CHF 62.51
ex VAT
Regular price
Sale price
CHF 62.51
ex VAT
In stock
Price Break
10+
CHF 55.63
19+
CHF 52.51
29+
CHF 51.88
39+
CHF 51.26
49+
CHF 50.63
74+
CHF 50.01
99+
CHF 46.88
199+
CHF 46.26
249+
CHF 45.63
499+
CHF 45.01
999+
CHF 43.76
Couldn't load pickup availability
Description
Description
NTN Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads.
Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 38.25mm
- Style:
- Taper Roller Bearing
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 100mm |
| T | 38.25mm |
| B | 36mm |
| C | 30mm |
| r<sub>s</sub> min | 2.5mm |
| r<sub>ls</sub> min | 0.6mm |
| --- | Speeds and loads |
| Dynamic load C<sub>r</sub> | 145kN |
| Static load C<sub>or</sub> | 175kN |
| Fatigue Load limit C<sub>u</sub> | 21.4kN |
| Allowable Speed in grease | 3800rpm |
| Allowable Speed in oil | 5100rpm |
| --- | Abutment dimensions |
| ISO Dimension series | 5FD |
| d<sub>a</sub> min | 55mm |
| d<sub>b</sub> max | 55.5mm |
| D<sub>a</sub> max | 91.5mm |
| D<sub>a</sub> min | 73.5mm |
| D<sub>b</sub> min | 95mm |
| S<sub>a</sub> min | 4mm |
| S<sub>b</sub> min | 9mm |
| r<sub>as</sub> max | 2.5mm |
| r<sub>1as</sub> max | 0.6mm |
| Load center a | 30mm |
| Constant e | 0.55mm |
| Y<sub>2</sub> | 1.1mm |
| Y<sub>0</sub> | 0.6mm |
| Weight | 1.47kg |
