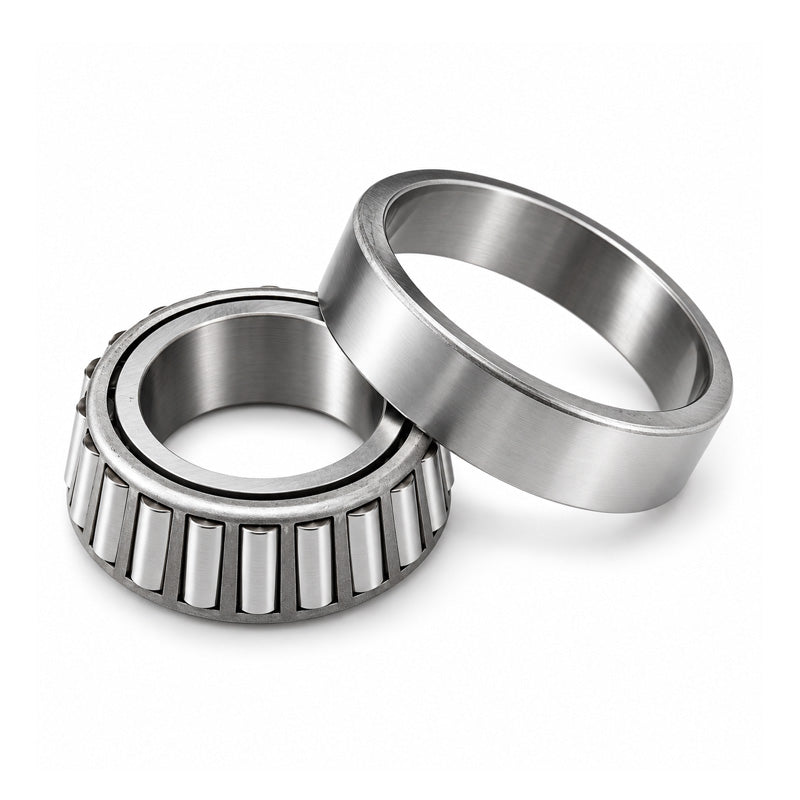

SKF 32309J2Q Metric Single Row Taper Roller Bearing 45x100x38.25mm
SKF 32309J2Q Metric Single Row Taper Roller Bearing 45x100x38.25mm
Regular price
CHF 57.00
ex VAT
Regular price
Sale price
CHF 57.00
ex VAT
In stock
Price Break
10+
CHF 44.84
19+
CHF 42.32
29+
CHF 41.82
39+
CHF 41.32
49+
CHF 40.81
74+
CHF 40.31
99+
CHF 37.79
199+
CHF 37.28
249+
CHF 36.78
499+
CHF 36.28
999+
CHF 35.27
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 38.25mm
- Seals / Shields:
- None
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| T | 38.25mm |
| Dynamic load | 173 kN |
| Static load | 170 kN |
| Fatigue load limit Pu | 20.4 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 7000 rpm |
| Weight | 1.36 kg |
| d1 | 71.1mm |
| B | 36mm |
| C | 30mm |
| r1r2 min | 2mm |
| r3r4 min | 1.5mm |
| a | 24.75mm |
| da max | 57mm |
| db min | 55mm |
| Da min | 82mm |
| Da max | 92mm |
| Db min | 93mm |
| Ca min | 4mm |
| Cb min | 8mm |
| ra max | 2mm |
| rb max | 1.5mm |
| Calculation factor e | 0.35 |
| Calculation factor Y | 1.7 |
| Calculation factor Y0 | 0.9 |
